Built for high performance and reliability, it ensures accurate product handling, flexible pack configuration and maximum efficiency with minimal manual intervention.
Ideal for bottles, jars, cans, cartons, pouches and other containers in a wide range of industries.
Inquire Here

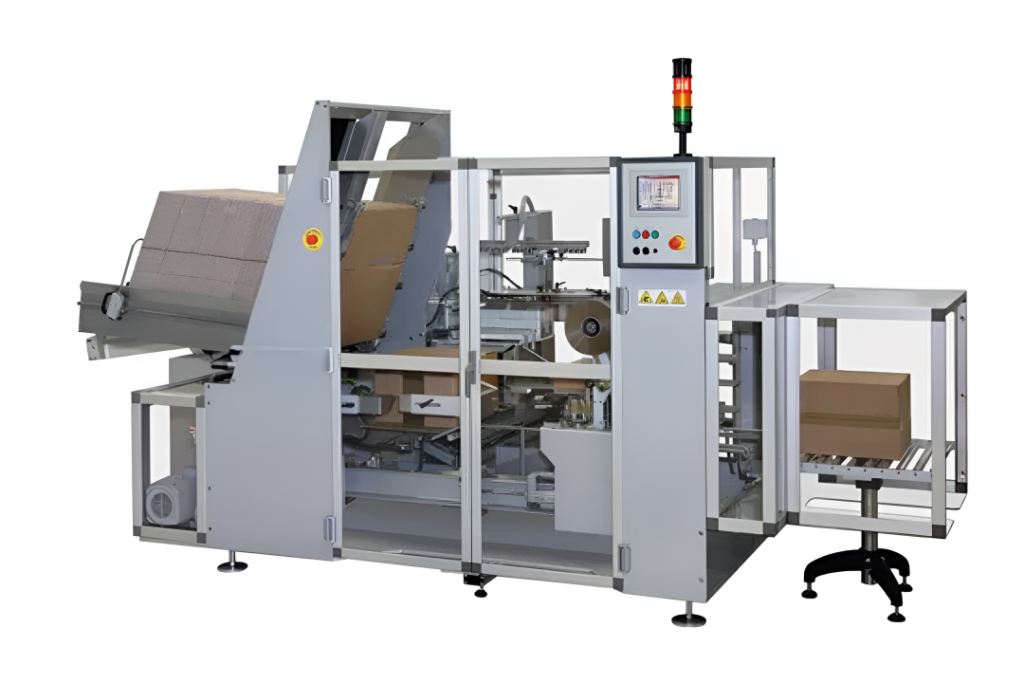

Specification of Automatic Case Packer With Case Erector Machine
| PARAMETER | SPECIFICATION |
| Machine Type | Automatic Case Erector with Case Packer |
| Production Capacity | Up to 10-20 Cases/Minute* |
| Packing Pattern | Customized as per Product |
| Product Type | Bottles, Jars, Cans, Containers |
| Carton Type | Corrugated RSC Cartons |
| Loading Method | Side Load/Top Load (Optional) |
| Case Forming | Automatic |
| Control System | PLC with Color Touch Screen HMI |
| Drive System | Servo Motor |
| Conveyor Height | 900 ± 50 mm |
| Machine Construction | SS304/MS Powder Coated |
| Power Supply | 415V AC, 3 Phase, 50 Hz |
| Power Consumption | 6-10 kW (Approx.) |
| Air Pressure | 300-500 LPM |
| Machine Dimensions (L x W x H) | As per Model |
| Machine Weight | Depends on Configuration |
Salient Features of Automatic Case Packer With Case Erector Machine
- Fully automatic case erecting and product packing operation
- Servo controlled product collation and case loading
- PLC controlled system with color Touch Screen HMI
- Automatic corrugated carton forming
- Accurate product counting and grouping
- No Product - No Case operation
- Suitable for multiple bottle and carton sizes
- Smooth conveyor synchronization
- Quick size changeover with minimum downtime
- Low maintenance and energy-efficient system
Our Products
- Automatic Bottle Unscrambler Machine
- Bottle Washing Machine
- Filling Machine
- Capping Machine
- Labeling Machine
- Shrink Wrapping Machine
- Case Packing Machine
- Special Purpose Machine
Optional Features of Automatic Case Packer With Case Erector Machine
- Automatic carton sealing (Tape Type)
- Hot Melt Glue Sealing System
- Robotic Pick & Place Loading
- Vision Inspection System
- Barcode Verification
- Automatic Divider / Leaflet Inserter
- Reject Conveyor System
- Production Data Logging & SCADA
- Remote Diagnostics
- CE Safety Compliance
Product Also Known As of Automatic Case Packer With Case Erector Machine
- Automatic carton sealing (Tape Type)
- Hot Melt Glue Sealing System
- Robotic Pick & Place Loading
- Vision Inspection System
- Barcode Verification
- Automatic Divider / Leaflet Inserter
- Reject Conveyor System
- Production Data Logging & SCADA
- Remote Diagnostics
- CE Safety Compliance
Machine Operation Process of Automatic Case Packer With Case Erector Machine
-
Step 1
Product Grouping : The products are arranged into a group (e.g. 4×3 bottles to form a 12-pack), In slower machines the product is fed single lane and grouping is done inside machine by successive strokes of pneumatic or electric pusher (or lifter.) In faster machines the product is introduced in multilane or pre-collated outside of machine. while high speed machines use continuous motion grouping -
Step 2
Bundle forming : A shrink film is wrapped around the products forming a bundle. there are using two rolls with hot knife cutting and sealing.
-
Step 3
Heat shrinking of Pack :The bundle passes through a heated chamber of the shrink tunnel, where re-circulated hot air causes the film to shrink and conform the the shape of enclosed products. Once outside, the pack is cooled by forced air to tighten the film forming semi rigid pack ready for stacking on pallet or further downstream packaging. -
Step 4
Colling of Pack : Once pack come outside from shrink tunnel, the pack is cooled by forced air to tighten the film forming semi rigid pack ready for stacking on pallet or further downstream packaging.
Video of Automatic Case Packer With Case Erector Machine
Frequently Asked Questions
This machine works on a principle of back pressure of Bottle which will be fed by the unscramble to reach separator assembly, which transfer the Bottle on conveyor belt and pushes bottle to the cleaning section one after another. Machine consists of two inverters and one cleaning section.
A series of nozzles blow air in the container at a high pressure. The dust is collected in dust collector box through exhaust fan. The container is further fed through the synchronized mechanism and feed worm. It is once again upright position and comes out duly cleaned for further operation.
We strictly implement responsibility of the post,
1) When you confirm order,the design department will send the final design for your confirmation before production.
2) The designer will follow the processing department to ensure each mechanical parts are processed correctly and timely.
3) After all parts done,designer transfer responsibility to the Assembly Dept,which need to assemble the equipment on time.
4) Responsibility transferred to Adjustment Dept with the assembled machine.Sales will check the progress and feedback to customer.
5) After customer’s video checking/factory inspection,sales will arrange the delivery.
6) If customer have problem during application,Sales will ask the After-sales Dept to solve it together
The Airjet Cleaning Machine applies compressed air through jets and also sucks through vacuum. Machine can be used to clean Glass/Plastic/Pet Bottles, Jars etc. Machine is suitable for cleaning of non-sterile products like Dry Syrups and Bulk Packing of Tablets & Capsules.
Automatic Air Jet Cleaning Machine inbuilt Unscramble is a compact unit used for cleaning of Dry Syrup pat bottles before filling.Pharmaceutical Syrup, Honey, Edible Oil, Lubricant Oil, Hair Oil, Shampoo, Cosmetics, Wine, Liquor, Beer
Application of Automatic Case Packer With Case Erector Machine
By Packaging Type
PET
HDPE
Aluminium Can
Jar
Tin
By Industries
Pharmaceutical
FMCG
Agriculture
Cosmetics
Oil
Distilleries
By Application
Pharmaceutical Syrup
Honey
Edible Oil
Lubricant Oil
Hair Oil
Shampoo
Cosmetics
Wine
Liquor
