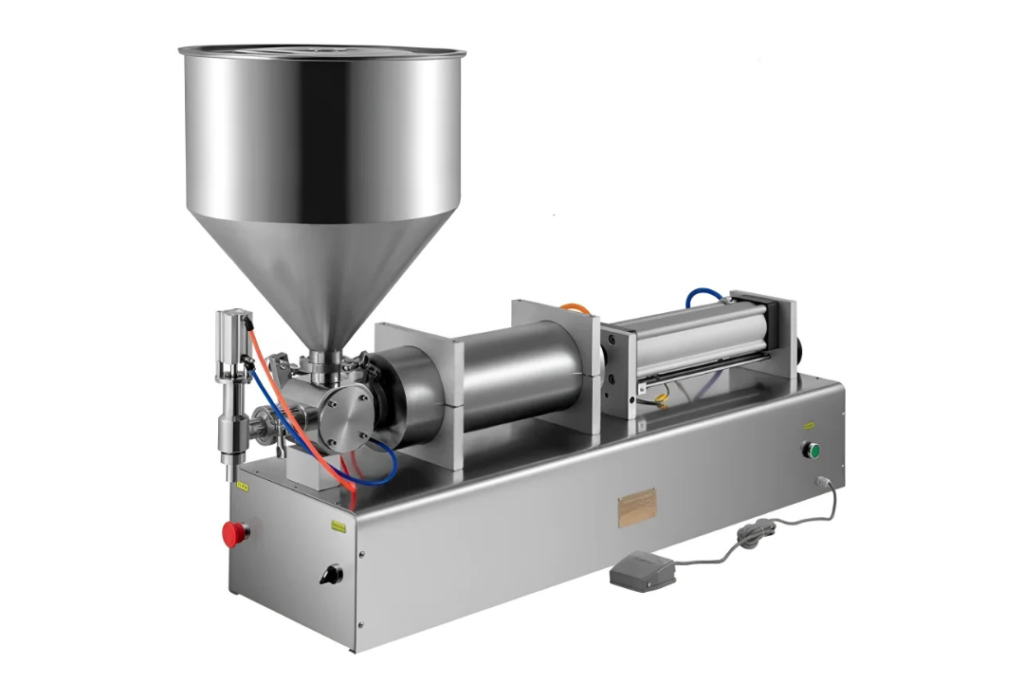

Automatic Pneumatic Piston Filling Machine SVPPF works on volumetric principle. The SVPPF Pneumatic Piston filling machine designed with advance technology which is suitable for handling a wide variety of semi-viscous and High Viscous products. Exclusive and Versatile design of Air Pneumatic control system coupled with the linear movement of the filling piston provides consitantat accurare filling as desired.The filling volume can set by adjusment of pneautic cyliner strock length through displacement magetic sensor, providing good filling accuracy. The piston is intelligently designed with an adjusting mechanism to enable users to obtain ultimate higher accuracy.
This SVPPF model having Touch Screen Display and this user friendly features of the display allows the operator to adjust the fill volume and also capable to store multiple recipe in the system. The operator can create, copy, edit and recall the recipe as desired. Change over completely tools-free, giving users a fast and efficient result. The unique design provides options for surface layer liquid filling, bottom layer liquid filling, and bottle neck (opening) filling accordingly with different types of liquids. The SVPPF can be used in food, pharmaceuticals, chemicals, cosmetics, and other industries. The personalized control panel system is easy to use and offers effective result management through the production monitoring on the PLC.
Inquire Here
At Siddhivinayak Engineering, you can easily inquire about our products or services by filling out the inquiry form or contacting our team directly. Reach out today to get personalized support and detailed information tailored to your industrial packaging requirements.
Specification of Automatic Pneumatic Piston Liquid Filling Machine
| Model | SVPPF-4 | SVPPF-6 | SVPPF-8 |
| Direction of Movement | Left to Right | Left to Right | Left to Right |
| Output/Min* | Up to 25 BPM | Up to 45 BPM | Up to 60 BPM |
| Power Supply | 1.0 kW Single Phase 220 Volts / 50 Hz (Main Machine) (Can Customized as Client Need) | 1.5 kW Single Phase 220 Volts / 50 Hz (Main Machine) (Can Customized as Client Need) | 2.0 kW Single Phase 220 Volts / 50 Hz (Main Machine) (Can Customized as Client Need) |
| MOC | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum |
| Machine Dimension | L 2000 mm x W 1600 mm x H 1900 mm (+/- 50mm ) | L 3000 mm x W 1600 mm x H 1800 mm (+/- 50mm ) | L 3500 mm x W 1600 mm x H 1800 mm (+/- 50mm ) |
| Convayer Length | L 2000 mm x W 100 mm | L 3000 mm x W 100 mm | L 3500 mm x W 100 mm |
| No. of Head | 4 Head - Pnuematic Operated | 6 Head - Pnuematic Operated | 8 Head - Pnuematic Operated |
| Filling Range | 50ml to 1000 ml | 50ml to 5000 ml | 50ml to 5000 ml |
| Machine Motion | Linear (Left To Right) | Linear (Left To Right) | Linear (Left To Right) |
| Filling Volume Accuracy | +/-1 % (depending upon type of liquid ) | +/-1 % (depending upon type of liquid ) | +/-1 % (depending upon type of liquid ) |
| Filling Nozzel | Bottom to top Pneuamatically Driving Nozzel System (Drop free Pnematic shut off vlave) | Bottom to top Pneuamatically Driving Nozzel System (Drop free Pnematic shut off vlave) | Bottom to top Pneuamatically Driving Nozzel System (Drop free Pnematic shut off vlave) |
| Volume Adjustment | From Tocuh Screen Display | From Tocuh Screen Display | From Tocuh Screen Display |
| Storage Tank Capacity | 70 ltr. | 100 ltr. | 150 ltr. |
| Suitable for Products | Free Flowing Liquids | Free Flowing Liquids | Free Flowing Liquids |
| Suitable for Packing Material | HDPE / PET / GLASS / METAL TIN / Aluminum Bottles | HDPE / PET / GLASS / METAL TIN / Aluminum Bottles | HDPE / PET / GLASS / METAL TIN / Aluminum Bottles |
| Air Supply | 5-6 CFM with 6 bar pressure with filter and regulator | 6-8 CFM with 6 bar pressure with filter and regulator | 8-10 CFM with 6 bar pressure with filter and regulator |
| Machine Weight (kg) | 450 | 550 | 650 |
| * Speed depend on fillng materil viscocity and nature of foaming . | |||
| **If Optional Features Are Choosen,Above Data May Vary. | |||
Salient Features of Automatic Pneumatic Piston Liquid Filling Machine
- No Bottle No Filling
- No Change Parts for change in Bottle Size -Minimum Change Over time
- Construction inlucding base frame structure of SS 304 anodized aluminium to ensures durability
- Precisely desinged piston which is controlled by Pneumatic Cylinder
- Integrated digital control with PLC and user friendly Touch screen controls for easy operation
- Each filling head having seperate controll which alllows fine tuning of each nozzel.
- 7” color touch screen display with multiple no. of recipe storage features
- Bottle holding mechanism for the best position of the bottles before filling action.
- Drip Free Nozzle to keep clean surafce of bottle & conveyer and perfect finished product.
- Diving Nozzle to reduce bubbling of foamy liquids
- Adjustable conveyor guide rails to accommodate with different products
- Inbuilt Storage tank with auto cut off inlet valve
- Reicipe base system which allow minimum Change Over time
- Adjustment of filling volume of individual nozzle by adjustment of Sensor.
- Synchronized variable speed control
- CIP without open any part at temperatures up to 70°c
- All contact parts are SS.-304/ 316//PTFE/Teflon/Silicon and non-contact parts SS 304
- Accurate and repeatability of fill volume
- Integrated fault light and alarm to inform operator production error
- Partially guarding for safety
