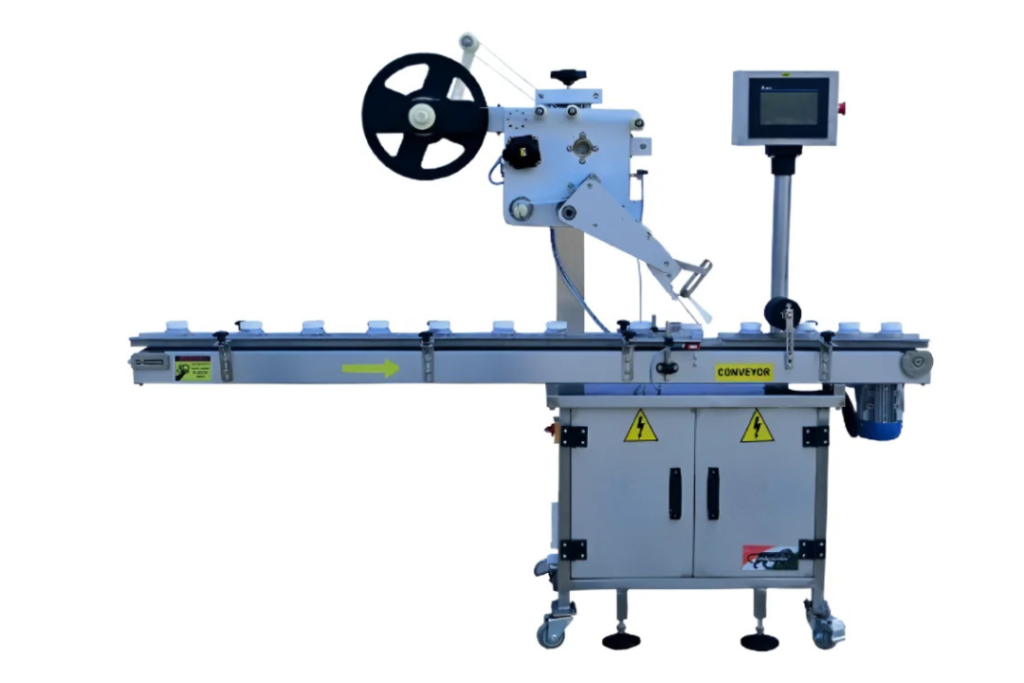

Automatic Hologram Label Applicator
Our Products Hologram Label Applicator for Production Lines
SVHLA is stand alone portable sticker labeling machine. The SVHLA is suitable for various types of Label and film sticking on container when required higher volume and label on conveyor line. This economic model incorporates advance label dispensing system and capable of Labeling up to 300 Hologram per minute depending on Length. The high performance label dispenser incorporates advance microprocessor-controller to be installed in very fast packaging lines. You can incorporate with assembly line or other packing line to get a high efficiency. The unique system creates smooth label application operation and helps in achieve high speeds.
Inquire Here
At Siddhivinayak Engineering, you can easily inquire about our products or services by filling out the inquiry form or contacting our team directly. Reach out today to get personalized support and detailed information tailored to your industrial packaging requirements.
Specification of Automatic Hologram Label Applicator
| Model | SVHLA100 | SVHLA200 | SVHLA300 | SVHLA500 |
| Direction of Movement | Left to Right | Left to Right | Left to Right | Left to Right |
| Output/Min* | Up to 100 Labels / Min. | Up to 200 Labels / Min. | Up to 300 Labels / Min. | Up to 500 Labels / Min. |
| Power Supply | 0.4 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) | 0.5 Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) | 0.9 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) | 1.2 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) |
| MOC | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum |
| Machine Dimension | L 1000 mm * W 600 mm * H 1500 mm | L 1000 mm * W 600 mm * H 1500 mm | L 1000 mm * W 600 mm * H 1500 mm | L 1000 mm * W 600 mm * H 1500 mm |
| Label Roll Core | 76 mm | 76 mm | 76 mm | 76 mm |
| Label Roll Diameter | 300 mm | 300 mm | 300 mm | 300 mm |
| Container Size | L 50-200 mm * W 50-100 mm * H 50-300 mm (Special Size Can be Customized) | L 50-200 mm * W 50-100 mm * H 50-300 mm (Special Size Can be Customized) | L 50-200 mm * W 50-100 mm * H 50-300 mm (Special Size Can be Customized) | L 50-200 mm * W 50-100 mm * H 50-300 mm (Special Size Can be Customized) |
| Bottle Height | 30~300 mm (Special Size Can be Customized) | 30~300 mm (Special Size Can be Customized) | 30~300 mm (Special Size Can be Customized) | 30~300 mm (Special Size Can be Customized) |
| Label Material | Self-Adhesive Sticker | Self-Adhesive Sticker | Self-Adhesive Sticker | Self-Adhesive Sticker |
| Stop Tolerance | +/ -1 mm | +/ -1 mm | +/ -1 mm | +/ -1 mm |
| Label Size | L 12-25 mm * W 12-25 mm | L 12-25 mm * W 12-25 mm | L 12-25 mm * W 12-25 mm | L 12-25 mm * W 12-25 mm |
| Gap between Two Labels | Minimum 3 mm | Minimum 3 mm | Minimum 3 mm | Minimum 3 mm |
| Printer Device | According to Customer’s Requirement | According to Customer’s Requirement | According to Customer’s Requirement | According to Customer’s Requirement |
| Machine Weight (kg) | 150 | 150 | 150 | 150 |
| * Speed Depends on Sticker Length | ||||
| **If Optional Features Are Choosen,Above Data May Vary. | ||||
Salient Features of Automatic Hologram Label Applicator
- No Bottle No Label
- Stand structure consist form M.S. with Power coating
- Advance PLC Controlled Stepper / Servo Motor Label Dispenser Unit
- On-line speed can be vary at single touch point
- Easly set with Existing conveyor system.
- Label dispenser speed can synchronised with help of Encoder system.
- Very Smooth And High-Speed Operation
- Touch Screen display (HMI)
- Label Pressing Sponge Roller - Accurate Label Placement
- Built-In Product Counter
- Horizontal & Vertical adjustment label dispnser system
- Auto Label Length Measurement
- Partial Machine Guarding
- Motoriesed Label Roll Unwinder system - Smooth label roll unwind.
Our Products
- Automatic Bottle Unscrambler Machine
- Bottle Washing Machine
- Filling Machine
- Capping Machine
- Labeling Machine
- Shrink Wrapping Machine
- Case Packing Machine
- Special Purpose Machine
Optional Features of Automatic Hologram Label Applicator
- Label Roll Empty Alarm : When the label rolls empty, Machine stops with the alarm
- Speed Syncronised : With help of encoder system label dispenser speed can synchronised with the existing conveyor
- Missing Label : Machine stop with alarm or online pneumatic operated product rejection system
- In Feed / Out Feed Jamming Sensor : When In Feed / Out Feed bottle jamm - Machine stop with alarm
- Tower Light : Tower light Indicates the status of the process
- Batch Code Printer : Online batch code / barcode / 2D matrix code printing on label
- Inspection & Rejection System : Online vision Inspection and rejection system
- Transparent Label Scanner : For Transparent label Scanning
Product Also Known As of Automatic Hologram Label Applicator
- Label Applicator
- Stand Alone Hologram Applicator
- Tax label Applicator
- Excise Label Applicator
- Tax stamp label applicator
- Tax Strip Label Applicator
- Tax Stamp Labeller
- GRA Excise Stamp Applicator
- high speed tax stamp label applicator
Machine Operation Process of Automatic Hologram Label Applicator
-
Step 1
Bottles come from the existing conveyor. -
Step 2
Product sensor checks the presence of bottle at labeling station and when the bottle is present below the labeling station, the PLC gives command to the both Label Dispenser to dispense the label.
-
Step 3
The Pressing rollers press the container at appropriate pressure and the label is stuck accurately on the container. -
Step 4
Then the bottle goes to the next processing.
Video of Automatic Hologram Label Applicator
Frequently Asked Questions
Please supply your products and label size (picture of labeled samples is rather helpful), then suitable labeling solution will be suggested accordingly.
Our Instllation team will Installation & Commissioning of the machine and provide complete technical training to the operating staff. If customer have problem after installation, Our After-sales Dept will guide to solve it on call and if probelm still not resolve then our sales team arrange the service visit and resolve it.
All the Fully automatic labeling systems can be integrated into production lines and packaging lines. These are usually connected to other systems and machines in the line via a conveyor belt. - both hardware and software.
Online Thermal Inkjet (TIJ), Continous Inkjet (CIJ) Thermal Transfer Over printing (TTO), Hot Foil Printer, Rubber Sterio Printet can be Interated with the labeing machine for Batch Code/ Barcode / Barcode printing.
If our labeling machines break down during operation, we are there to support our customers quickly and efficiently. With our limited warranty, we sufficiently replace/back our products. In the event of issues or questions, we have a full inside customer support team that can help clients through virtual assistance. We offer on-site support as well for our local Los Angeles area clients.
