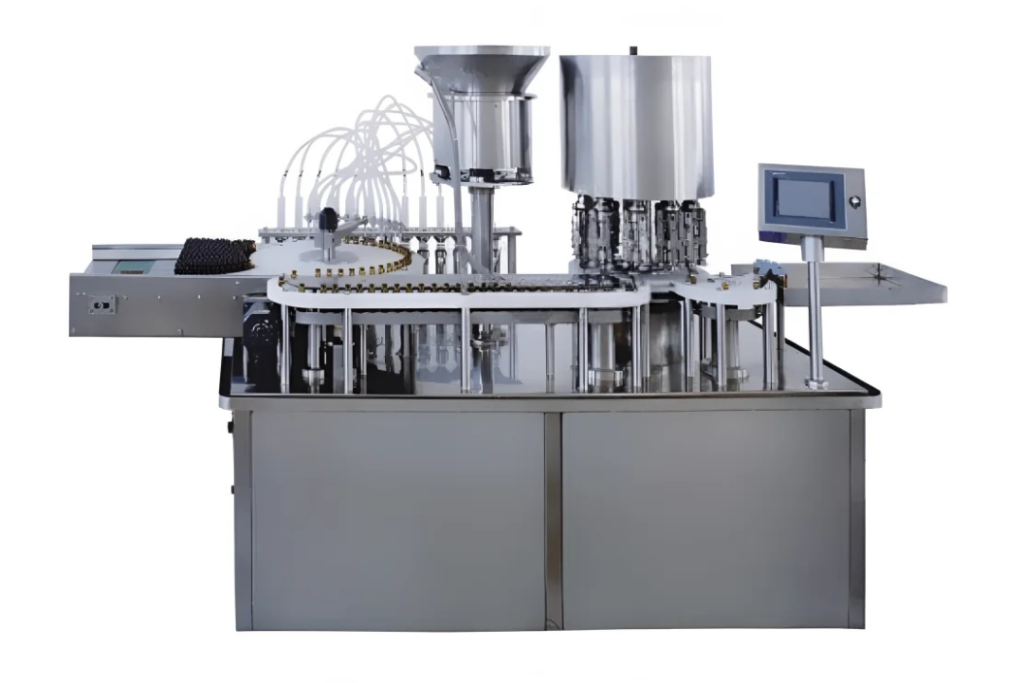

Automatic Peristaltic Pump Liquid Filling Machine
Our Products Efficient Automatic Peristaltic Pump Liquid Filling Machine
Automatic Peristaltic Pump Filling Machine is work on peristatlic technology. SVPEF model are suitable for small volume fills involving light viscosity products at high precise accurecy. Filling poduct not diectly contact with the pump or any metal hense no risks of cross-contamination. This ideal model sutiable for packaging “hygiene, health, agri-food” products such as e-liquid, natural flavors, essential oils, etc. The SVPEF integrated wih PLC filler is controlled by an intuitive touch screen for easy handling, visualization and rapid modification of all control parameters.
Inquire Here
At Siddhivinayak Engineering, you can easily inquire about our products or services by filling out the inquiry form or contacting our team directly. Reach out today to get personalized support and detailed information tailored to your industrial packaging requirements.
Specification of Automatic Peristaltic Pump Liquid Filling Machine
| Model | SVPEF-4 | SVPEF-6 | SVPEF-8 |
| Direction of Movement | Left to Right | Left to Right | Left to Right |
| Output/Min* | Up to 25 BPM | Up to 40 BPM | Up to 60 BPM |
| Power Supply | 1.5 kW Single Phase 220 Volts / 50 Hz (Main Machine) (Can Customized as Client Need) | 2.0 kW Single Phase 220 Volts / 50 Hz (Main Machine) (Can Customized as Client Need) | 2.5 kW Single Phase 220 Volts / 50 Hz (Main Machine) (Can Customized as Client Need) |
| MOC | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum |
| Machine Dimension | L 2000 mm x W 800 mm x H 1700 mm (+/- 50mm ) | L 2500 mm x W 800 mm x H 1700 mm (+/- 50mm ) | L 2500 mm x W 800 mm x H 1700 mm (+/- 50mm ) |
| Convayer Length | L 2000 mm x W 100 mm | L 2500 mm x W 100 mm | L 2500 mm x W 100 mm |
| No. of Head | 4 Head | 6 Head | 8 Head |
| Filling Range | 1 ml to 100 ml | 1 ml to 100 ml | 1 ml to 100 ml |
| Machine Motion | Linear (Left To Right) | Linear (Left To Right) | Linear (Left To Right) |
| Filling Volume Accuracy | +/-0.5-1 % (depending upon type of liquid ) | +/-0.5-1 % (depending upon type of liquid ) | +/-0.5-1 % (depending upon type of liquid ) |
| Filling Nozzel | Bottom to top Pneuamatically Driving Nozzel System | Bottom to top Pneuamatically Driving Nozzel System (Drop free Pnematic shut off vlave) | Bottom to top Pneuamatically Driving Nozzel System (Drop free Pnematic shut off vlave) |
| Volume Adjustment | From Tocuh Screen Display | From Tocuh Screen Display | From Tocuh Screen Display |
| Suitable for Products | Pharmaceutical preparations, perfumes, fragrances, reagents, essential oils, inks, dyes, thin paint, and various other specialty chemicals | Pharmaceutical preparations, perfumes, fragrances, reagents, essential oils, inks, dyes, thin paint, and various other specialty chemicals | Pharmaceutical preparations, perfumes, fragrances, reagents, essential oils, inks, dyes, thin paint, and various other specialty chemicals |
| Suitable for Packing Material | HDPE / PET / GLASS / METAL TIN / Aluminum Bottles | HDPE / PET / GLASS / METAL TIN / Aluminum Bottles | HDPE / PET / GLASS / METAL TIN / Aluminum Bottles |
| Air Supply | 2-3 CFM with 6 bar pressure with filter and regulator | 4-5 CFM with 6 bar pressure with filter and regulator | 5-6 CFM with 6 bar pressure with filter and regulator |
| Machine Weight (kg) | 250 | 325 | 400 |
| * Speed depend on fillng materil viscocity and nature of foaming . | |||
| **If Optional Features Are Choosen,Above Data May Vary. | |||
Salient Features of Automatic Peristaltic Pump Liquid Filling Machine
- No Bottle No Filling
- Filling material is not diectly contact with the pump or any metal hense no risks of cross-contamination.
- Construction inlucding base frame structure of SS 304 anodized aluminium to ensures durability
- No Change Parts for change in Bottle Size -Minimum Change Over time
- Precisely desinged Peristatlic pumps which is controlled by stepper motor
- Each filling head having seperate Pump which alllows fine tuning of each nozzel.
- Easly set Flow rate as per various dia. of tube for various type of liquid.
- Touch screen display with recipe storage
- Bottle holding mechanism for the best position of the bottles before filling action.
- Maintenance free brushless reversible pump motor with precision speed control
- Diving Nozzle to reduce bubbling of foamy liquids
- tool-less modular design for fast tube loading/unloading
- Reicipe base system which allow minimum Change Over time
- Adjustment of filling volume of individual nozzle by HMI
- Synchronized variable speed control
- CIP without open any part at temperatures up to 70°c
- All contact parts are SS.-304/ 316//PTFE/Teflon/Silicon and non-contact parts SS 304
- Accurate and repeatable fill volume
- Partially guarding for safety
Our Products
- Automatic Bottle Unscrambler Machine
- Bottle Washing Machine
- Filling Machine
- Capping Machine
- Labeling Machine
- Shrink Wrapping Machine
- Case Packing Machine
- Special Purpose Machine
Optional Features of Automatic Peristaltic Pump Liquid Filling Machine
- Safety Cabinet : To get more hygienic environment and ensure safety & quality use safety cabinet
- In Feed / Out Feed Jamming Sensor : When In Feed / Out Feed bottle jamm - Machine stop with alarm
- Tower Light : Tower light Indicates the status of the process
- Bottle Neck Holding Guide : Bottle neck holding mechanism for the best position of the bottles before filling action.
Product Also Known As of Automatic Peristaltic Pump Liquid Filling Machine
- Automatic Peristalic pump Filling Machine
- Automatic Lab Slolution filling Machine
- Automatic Digital Filling Machine
Machine Operation Process of Automatic Peristaltic Pump Liquid Filling Machine
-
Step 1
Feed bottles on conveyor or using automatic botte turntable. The Conveyor convey the bottles very smoothly. When container moves on conveyor Product Sensor gives command to PLC and Stopper system hold the bottle below the filling station at right position for filling. -
Step 2
The Driving Nozzels unit comes downward and nozzles entering in to the bottle same time PLC unit gives command to Peristatlic pump to start filling.
-
Step 3
Peristatlic pump ill stop when count reach at sattable count Nozzles unit moves upward and Bottle Stopper will open and bottles moves out from the filling statiion. -
Step 4
Then the bottle goes to the next processing.
Video of Automatic Peristaltic Pump Liquid Filling Machine
Frequently Asked Questions
Containers moving on SS Slat conveyor, feed below the filling nozzles through a settable twin pneumatically operated stopper system. The twin pneumatically operated stopper system and reciprocating nozzles can precisely match for centering of container below nozzles, to avoid spillage of liquid on container.
The peristaltic pump makes intermittent contact on only the outside of the surgical product so that the product only touches the inside of the bottle. The filler’s master computer independently tracks the of rotations of the peristaltic pump head so that it knows precisely how much product has been delivered. When the target fill volume is reached, the pump stops and the remaining product fluid does not drip out due to pipette action. The computer stores all fill parameters in memory for fast changeovers.
Automatic peristaltic pump based liquid filling machine are generally used to filling liquid with less viscosities like medicenes liquid etc . The main advantage of peristalic pump based liquid filling machine is it can provide high accuracy filling even in very less volumes like 5ml etc.
Automatic Peristaltic Pump Base Hair Dye Bottle Filling Machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine. The unit is made compact, versatile and S.S. body. No container No filling system arrangement is standard features of the machine. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body.
Pharmaceuticals, Dairy, pesticides, Distilleries & Beverages, Cosmetics & Toiletries, Lube & Edible Oil, Food Industries etc.
