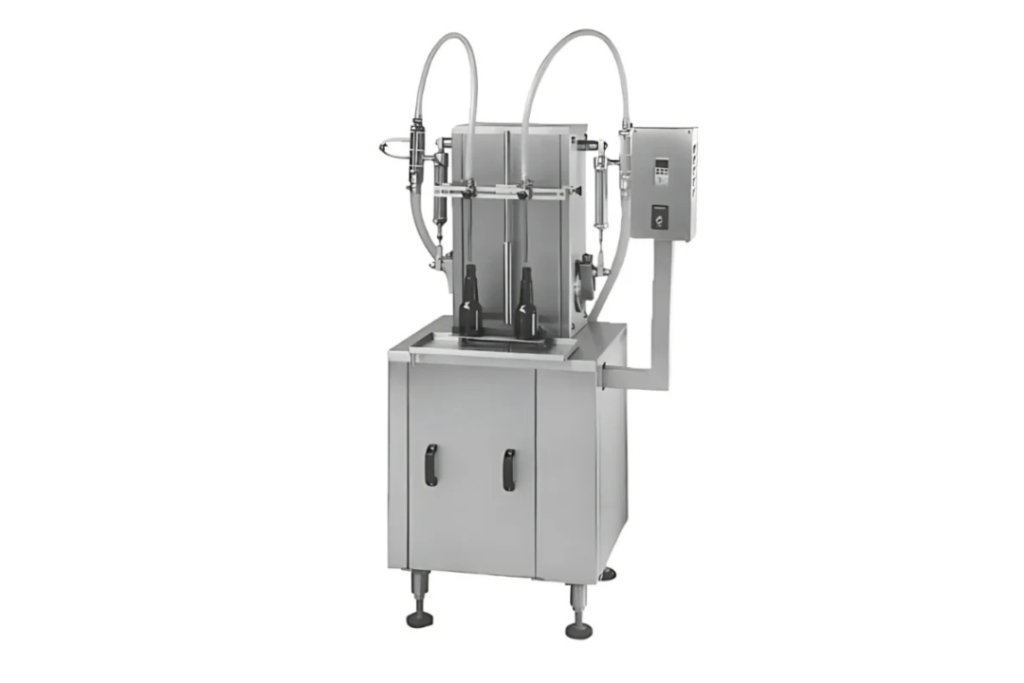

SVSAVLF operates on the volumetric principle. This economical, compact and versatile model is common Used by small businesses.The SVSAVLF consists of a sturdy welded steel frame completely wrapped in a stainless steel sheet and has doors to facilitate machine maintenance.The containers must be manually placed one by one under the filling nozzles on the machine platform. The Motor Operated syringe fills the container with the desired preset capacity. The bottle guide allows the container to be accurately aligned under the nozzle to prevent liquid from spilling into the container.Dosing block with a hexagonal bottle under the syringe. This makes it easy to adjust the fill size.
Inquire Here
At Siddhivinayak Engineering, you can easily inquire about our products or services by filling out the inquiry form or contacting our team directly. Reach out today to get personalized support and detailed information tailored to your industrial packaging requirements.
Specification of Semi Automatic Volumetric Liquid Filling Machine
| Model | SVSAVLF |
| Output/Min* | Up to 10 BPM |
| Power Supply | 1 kW Single Phase 220 Volts / 50 Hz (Main Machine) (Can Customized as Client Need) |
| MOC | Stainless Steel 304, Anodized Aluminum |
| Machine Dimension | L 500 mm * W 650 mm * H 700 mm (+/- 50mm ) |
| Convayer Length | L 2000 mm * W 100 mm Slat Chain |
| No. of Head | 2 Head |
| Filling System | Mechaniacally operated Piston cylinder |
| Suitable for Products | Free Flowing Liquids |
| Filling Range | 50ml to 1000 ml |
| Volume Adjustment | Adj. of Volume Block screw |
| Suck Back System | Non Return Valve (NRV) Based |
| Filling Nozzel | Bottom to top Pneuamatically Driving Nozzel System (Drop free nozzel) |
| Filling Volume Accuracy | +/-1 % (depending upon type of liquid ) |
| Suitable for Packing Material | HDPE / PET / GLASS / METAL TIN / Aluminum Bottles |
| Machine Weight (kg) | 100 kg |
| **If Optional Features Are Choosen,Above Data May Vary. | |
Salient Features of Semi Automatic Volumetric Liquid Filling Machine
- Construction inlucding base frame structure of SS 304 anodized aluminium to ensures durability
- Precisely design Piston for accureate filling operation.
- Measuring scale with pointer indication on Volume setting screw-Easy Change Over.
- Bottle holding mechanism for the best position of the bottles before filling action.
- Diving Nozzle to reduce bubbling of foamy liquids
- Designed for easy changeover and cleaning.
- Minimum Change Over time
- Filling speed can adjust by variable speed drive
- All contact parts are SS-316/peek/PTFE/Teflon/Silicon and non-contact parts SS 304
- CIP without open any part at temperatures up to 70°c
- Individual fill volume adjustment for fine tuning
- Partially guarding for safety
Our Products
- Automatic Bottle Unscrambler Machine
- Bottle Washing Machine
- Filling Machine
- Capping Machine
- Labeling Machine
- Shrink Wrapping Machine
- Case Packing Machine
- Special Purpose Machine
Optional Features of Semi Automatic Volumetric Liquid Filling Machine
- Safety Cabinet : To get more hygienic environment and ensure safety & quality use safety cabinet
- Dropping Tray under the Nozzles : Pneumatic Operated Drooping Tray under the Nozzles for High viscussed liquid
- Boottle Neck Holding Guide : Bottle neck holding mechanism for the best position of the bottles before filling action.
- Safety Cabinet : To get more hygienic environment and ensure safety & quality use safety cabinet
- Flame Proof System : Provide Flame proof control panel wtih flame proof electrical and electronics devices for flammble filling material
Product Also Known As of Semi Automatic Volumetric Liquid Filling Machine
- Semi Automatic Filling Machine
- Semi Automatic Volumatric Filling Machine
- Semi Automatic Liquid Filling Machine
- Semi Automatic Bottle Filling Machine
- Semi Automatic Lubricant Oil Filling Machine
Machine Operation Process of Semi Automatic Volumetric Liquid Filling Machine
-
Step 1
Feed bottles below the filling nozzles. -
Step 2
The Driving Nozzels unit comes downward and nozzles entering in to the bottle and start the filling.
-
Step 3
When filling completed Nozzles unit moves upward and remove fllled bottle. -
Step 4
Then the bottle goes to the next processing.
Video of Semi Automatic Volumetric Liquid Filling Machine
Frequently Asked Questions
Containers have to place manually below the filling nozzles at platform of machine. Where motor operated syringes fill desire pre set volume in container, bottle guide are provide for precisely match for centering of container below nozzles, to avoid spillage of liquid on container. The dosing block with a hexagonal bolt fitted below syringes. This means fill size can be easily set.
Semi Automatic Volumetric Liquid Bottle Filling Machine works on volumetric principle with syringe & piston & nozzle. It is used to fill liquid in bottle.in pharmacy, food, dairy, agro chemicals, Beverages industries.
The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body, consists of, drive unit with gear motor, eccentric drives, Syringe piston assembly, Reciprocating Nozzle with self-centering devices. Bottle is manually loaded in position for filling and unloaded after filling.
The Machine can give speed of 15-20 Bottles per minute depending on nature of liquids,Neck Diameter or Bottle and Fill Volume.Machine Suitable for small Volume Production having multiple Products.
It is used to fill liquid in bottle in Pharmacy, Food, Dairy, Agro Chemicals, Beverages industries.
