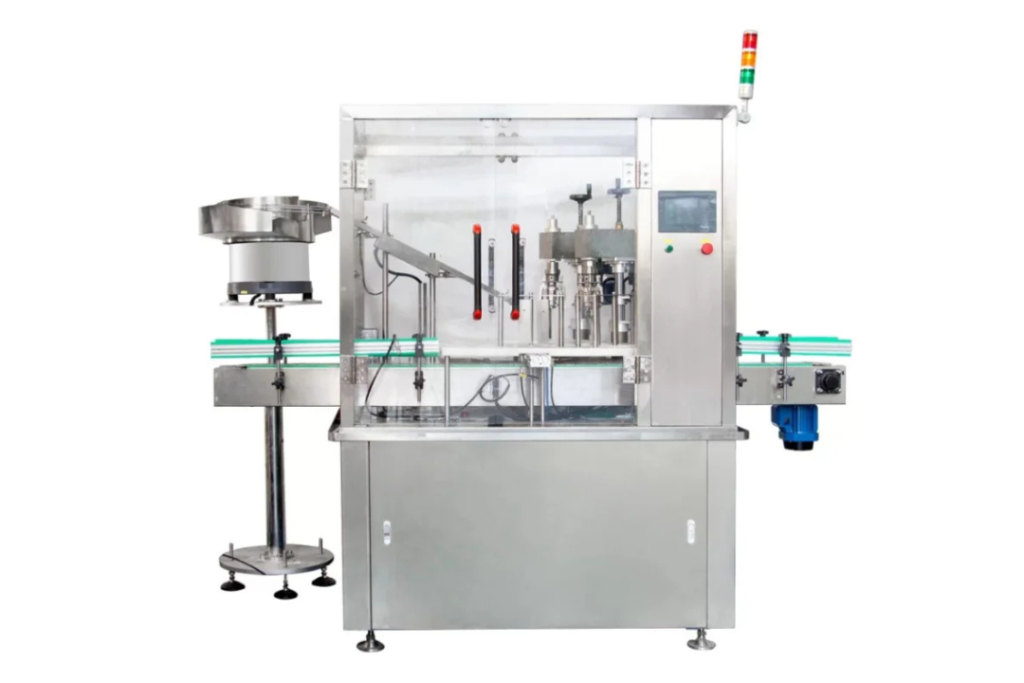

Automatic ROPP Capping Machine-SVRCS 60/100/150/200 is suitable for automatically capping and sealing Of ROPP caps on Various bottle sizes. The machine is user-friendly, versatile and self-sufficient. This Automatic ROPP Capping machines are suitable for use in the pharmaceutical, food, crop protection, chemical, beverage, liquor and other packaging industries.
Inquire Here
At Siddhivinayak Engineering, you can easily inquire about our products or services by filling out the inquiry form or contacting our team directly. Reach out today to get personalized support and detailed information tailored to your industrial packaging requirements.
Specification of Automatic ROPP Capping Machine
| Model | SVRCS60 | SVRCS100 | SVRCS150 | SVRCS200 |
| Direction of Movement | Left to Right | Left to Right | Left to Right | Left to Right |
| Output/Min* | Up to 30 BPM | Up to 60 BPM | Up to 80 BPM | Up to 120 BPM |
| Power Supply | 1.5 kW / 230 Volts / 50 Hz (Main Machine) 0.18 kW / 230 Volts / 50 Hz (Cap Feeder Vibrator) (Can Customized as Client Need) | 1.5 kW / 230 Volts / 50 Hz (Main Machine) 0.18 kW / 230 Volts / 50 Hz (Cap Feeder Vibrator) (Can Customized as Client Need) | 1.5 kW / 230 Volts / 50 Hz (Main Machine) 0.18 kW / 230 Volts / 50 Hz (Cap Feeder Vibrator) (Can Customized as Client Need) | 1.5 kW / 230 Volts / 50 Hz (Main Machine) 0.18 kW / 230 Volts / 50 Hz (Cap Feeder Vibrator) (Can Customized as Client Need) |
| MOC | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum |
| Machine Dimension | L 2000 mm * W 780 mm * H 1700 mm (+/- 50mm ) | L 2000 mm * W 780 mm * H 1700 mm (+/- 50mm ) | L 2000 mm * W 780 mm * H 1700 mm (+/- 50mm ) | L 2000 mm * W 780 mm * H 1700 mm (+/- 50mm ) |
| Convayer Length | L 2000 mm * W 100 mm +/- 50 mm Ht. S.S Slat Chain | L 2000 mm * W 100 mm +/- 50 mm Ht. S.S Slat Chain | L 2000 mm * W 100 mm +/- 50 mm Ht. S.S Slat Chain | L 2000 mm * W 100 mm +/- 50 mm Ht. S.S Slat Chain |
| No. of Head | 1 Head | 4 Head | 6 Head | 8 Head |
| Type Of Capping | ROPP Capping | ROPP Capping | ROPP Capping | ROPP Capping |
| Machine Motion | Rotary Motion - Index Based | Rotary Motion - Index Based | Rotary Motion - Index Based | Rotary Motion - Index Based |
| Screw Cap Size | Ø10 mm to Ø80 mm (Special Size Can be Customized) | Ø10 mm to Ø80 mm (Special Size Can be Customized) | Ø10 mm to Ø80 mm (Special Size Can be Customized) | Ø10 mm to Ø80 mm (Special Size Can be Customized) |
| Capping Unit | Adjustable Cap Thread Unit | Adjustable Cap Thread Unit | Adjustable Cap Thread Unit | Adjustable Cap Thread Unit |
| Caps Feeding | Vibratory Bowl Feeder / Cap Elevator | Vibratory Bowl Feeder / Cap Elevator | Vibratory Bowl Feeder / Cap Elevator | Vibratory Bowl Feeder / Cap Elevator |
| Cap Pick On Container | Chute Pick Up | Chute Pick Up | Chute Pick Up | Chute Pick Up |
| Bottle Diameter | Up to 90 mm (Special Size Can be Customized) | Up to 90 mm (Special Size Can be Customized) | Up to 90 mm (Special Size Can be Customized) | Up to 90 mm (Special Size Can be Customized) |
| Bottle Height | 50 - 350 mm (Special Size Can be Customized) | 50 - 350 mm (Special Size Can be Customized) | 50 - 350 mm (Special Size Can be Customized) | 50 - 350 mm (Special Size Can be Customized) |
| Bottle Material | PET, Glass | PET, Glass | PET, Glass | PET, Glass |
| Option | With Bowl or With Cap Elevator | With Bowl or With Cap Elevator | With Bowl or With Cap Elevator | With Bowl or With Cap Elevator |
| Change Parts | Required in case of change in Cap Size & Bottle Size (Star Plate, Cap Bowl, Cap Chute) | Required in case of change in Cap Size & Bottle Size (Star Plate, Cap Bowl, Cap Chute) | Required in case of change in Cap Size & Bottle Size (Star Plate, Cap Bowl, Cap Chute) | Required in case of change in Cap Size & Bottle Size (Star Plate, Cap Bowl, Cap Chute) |
| Machine Weight (kg) | 340 | 340 | 340 | 340 |
| Right Of Technical Enhancement & Modifications Reserved | ||||
| **If Optional Features Are Choosen,Above Data May Vary. | ||||
Salient Features of Automatic ROPP Capping Machine
- No Container No Cap
- Total GMP Model
- Construction i/c main machine frame - S.S 304
- Synchronized variable speed control
- Fully synchronizes conveyor, star wheel, & platform turret
- Accurate and repeatable performance
- Smooth and accurate container handling
- Star plat and feed worm made from UHMW material for smooth convey
- All contact parts are made out of stainless steel
- Capping Torque can be adjustable
- Cap Feeding by Vibrator Bowl with Cap chute
- AC Drive for speed control
- Adjustable height of conveyor belt through adjustable leg
- All standard electrical components and Motors
- Fast product changeovers
- Clutch System in star wheel to avoid bottle damage during operation
- Minimum Setting time
- Hopper can be completely dismantle for easy cleaning
- Single Drive synchronizing operation of Conveyor and Star Wheel
Our Products
- Automatic Bottle Unscrambler Machine
- Bottle Washing Machine
- Filling Machine
- Capping Machine
- Labeling Machine
- Shrink Wrapping Machine
- Case Packing Machine
- Special Purpose Machine
Optional Features of Automatic ROPP Capping Machine
- Safety Cabinet : S.S Frmae with Poly Carbonate doors are provided for visibility of cutting material
- Cap Feeding System : Cap Feeder Elevator or Cap Vibrator Bowl
Product Also Known As of Automatic ROPP Capping Machine
- Automatic Capping Machine
- Automatic ROPP Capping Machine
- Automatic Bottle Capping Machine
- Automatic Glass Bottle Capping Machine
- Automatic Bottle Sealing Machine
Machine Operation Process of Automatic ROPP Capping Machine
-
Step 1
Previously filled bottles are continuously fed from the filling machine to the slat conveyor of the capping machine and then moved by the feeding screw to ensure the proper gap between the two bottles and transferred to the in feed star wheel. -
Step 2
ROPP caps kept in Vibratory unit automatically orient caps in right direction before entering into delivery cap chute,bottle pick the cap from delivery chute.
-
Step 3
Bottle is entering below the sealing head, consist of total four rollers.The two rollers properly hem and twist the cap to seal, while at the same time the two rollers perform full threading depending on the diameter of the bottleneck. -
Step 4
After sealing operation, sealing head moves upward with help of cam and bottle move with exit star wheel and Move further on conveyor belt for next operation.
Video of Automatic ROPP Capping Machine
Frequently Asked Questions
Bottle would be in Round shape with 50ml to 1000 ml varient size.
Volumetric filling machines fill bottles or containers with a precise pre set volume of liquid t, regardless of the discrepancies in your containers’ interior volumes.
Understanding the differences between the various types of volumetric filling machines will help you find the best option for your unique business needs. The type needed depends upon the product characteristics and the size, shape, and type of container.
The S.S. slat conveyor is used to move the containers. The twin pneumatically operated stopper system is used to fill the
bottles. The reciprocating nozzles can precisely match for the centering of container bellow nozzles. This adjustment helps
to avoid the spilage of liquid on container. During filling, the nozzle goes upwards slowly from bottom to neck to minimize
the foaming. The nozzle can adjust according to the filling dose. The fill size can be set through the hexagonal bolt fitted
below syringes.
It is used to fill liquid in bottle in pharmacy, food, dairy, agro chemicals, Beverages industries.
