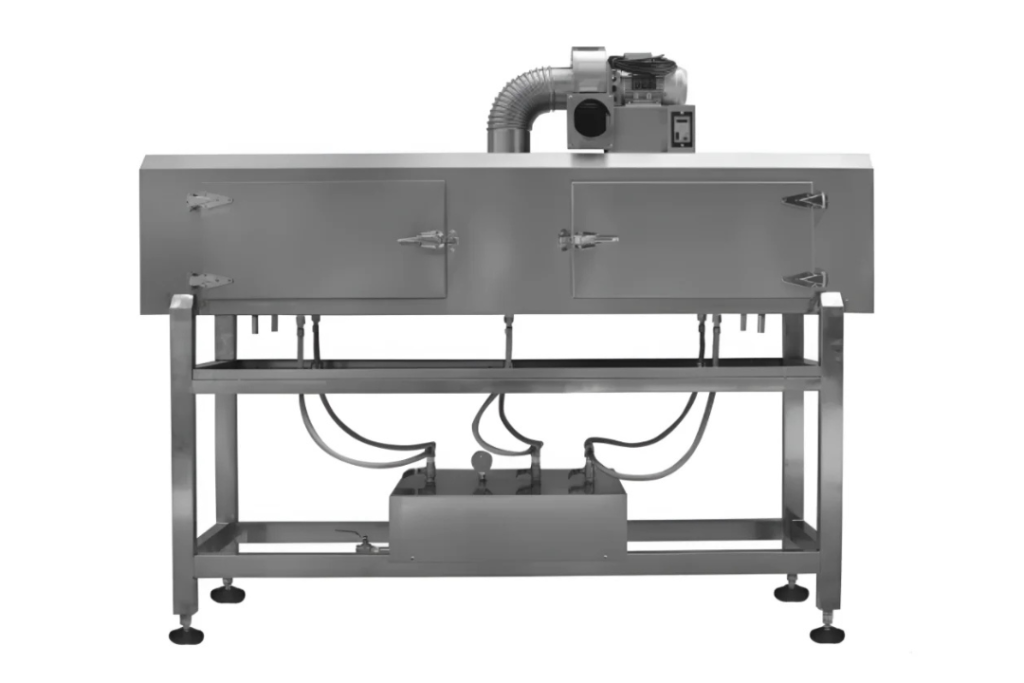

SVSST – Steam shrink tunnel is employed for shrink sleeve label and tamper evident band application. this model is suitbale for Partially/ Full body / cap shrink applications.SVSST is designed and manufactured to consistently take on the most difficult shrink labeling operations while keeping enegy costs low.The high quality & advance technology steam system provides the different steam zones with steam energy. This can be manually contolled through the regulating valve This enables an even shrinking of the sleeve onto the product.
Multiple steam zones and adjustable tier manifold direct steam heat where needed to produce a precise, high quality finish appearance of PVC, PETG, OPS, and PLA labels and neck bands. Tunnel steam zones can be set independently to ensure a quality finish regardless of container shape or size.
Inquire Here
At Siddhivinayak Engineering, you can easily inquire about our products or services by filling out the inquiry form or contacting our team directly. Reach out today to get personalized support and detailed information tailored to your industrial packaging requirements.
Specification of Steam Shrink Tunnel
| Model | SVSST100 | SVSST200 | SVSST300 |
| Direction of Movement | Left To Right | Left To Right | Left To Right |
| Output/Min* | 100 BPM | 200 BPM | 300 BPM |
| Power Supply * | 18 KW 3 Phase 440V 50Hz AC Supply (for Steam Boiler) | 27 KW 3 Phase 440V 50Hz AC Supply (for Steam Boiler) | 33 KW 3 Phase 440V 50Hz AC Supply (for Steam Boiler) |
| MOC | S.S.304 | S.S.304 | S.S.304 |
| Machine Dimension | 1500 mm(L) x 500 mm (W) x 1400 mm (H) | 2000 mm(L) x 500 mm (W) x 1400 mm (H) | 2000 mm(L) x 500 mm (W) x 1400 mm (L) |
| Tunnel Window Size | 110 mm(W) x 300 mm(H) | 110 mm(W) x 300 mm(H) | 110 mm(W) x 300 mm(H) |
| Tunnel Chamber Size | 1500mm (L) x 500 mm(W) x 500 mm(H) | 2000mm (L) x 5000 mm(W) x 500 mm(H) | 2000mm (L) x 500 mm(W) x 500 mm(H) |
| Bottle Diameter | 30~90 mm (Special Size Can be Customized) | 30~90 mm (Special Size Can be Customized) | 30~90 mm (Special Size Can be Customized) |
| Bottle Height | 50~300 mm (Special Size Can be Customized) | 50~300 mm (Special Size Can be Customized) | 50~300 mm (Special Size Can be Customized) |
| Sleeve Material | PVC / PET / OPS / PLA | PVC / PET / OPS / PLA | PVC / PET / OPS / PLA |
| Change Part | Not required | Not required | Not required |
| Machine Weight | 150kg (Approx) | 200kg (Approx) | 260kg(Approx) |
| **If Optional Features Are Choosen,Above Data May Vary. | |||
Salient Features of Steam Shrink Tunnel
- Best choice for half or full container shrink-wrap application at low to high speed.
- Ideal for applications that demand precise sleeve location.
- Perfect label registration and container shape conformance.
- Perfect shrinkage without creating bubble marks, wrinkles, color bleeding or sleeve shifting.
- Excellent option for flammable or under pressure product, e.g. aerosol can.
- Eliminate the risk of plastic container distortion.
- Easily integrate into existing production line or install stand alone.
- New cantilevered design-Standard height adjustable, cantilevered frame for long lasting operation and added flexibility
- Maintenance firiendly Side panels on both sides give easy accessibility to inside of tunnel
- Modular-Available in 3-6-zone configurations
- Simplified steam manifold and independently adjust and control steam flow
- Flexibility-Four axis adjustments allows for high quality shrinks on a wide variety of container shapes and sizes
- Easy changeover-Only allen wrenches required
- Durable- S.S. construction
- Excess steam exhaust : Air blower with adjustable steam exhaust window
- Moisture collection: Integrated drip tray and steam collection
Our Products
- Automatic Bottle Unscrambler Machine
- Bottle Washing Machine
- Filling Machine
- Capping Machine
- Labeling Machine
- Shrink Wrapping Machine
- Case Packing Machine
- Special Purpose Machine
Optional Features of Steam Shrink Tunnel
- Porable Steam Generator : 18 kW Portable Steam Boiler
- Excess Steam Blowe : 0.5 H.P. Vacuum Blower for exhuse of excessive steam
- Container Drying system : Air Knife System with Blower for drying of droplets on container.
Product Also Known As of Steam Shrink Tunnel
- Steam Shrink Tunnel
- Steam Tunnel Machine
- Fully Automatic Steam Shrink Tunnel
- Automatic Steam Tunnel Machine
Machine Operation Process of Steam Shrink Tunnel
-
Step 1
Feed sleeve applied container on conveyor or using automatic sleeve applicator. The Conveyor moves very smoothly to convey the container and The Space Creator creates a proper gap between two containers, when the container moves on the Conveyor.sleeve applied containeer moving ahead in tunnel chamber. -
Step 2
In steam tunnel chamber, vaporizer hot steam eject on the sleeve applied container.loose sleeve start to shrink and it will get a shape of container.
-
Step 3
once sleeve lebeling container comes outside from shrink tunnel,the container is cooled by environmental air anf will get perfect shape of container. -
Step 4
now,the container is ready to downstream packging.
Video of Steam Shrink Tunnel
Frequently Asked Questions
Steam Shrink Tunnel is employed for shrink sleeve label and tamper evident band application for a middle, full body and cap shrink applications
The High quality & advance technology steam system provides the different steam zones with steam energy. This can be manually controlled through the regulating valve. This enables and even shrinking of the sleeve onto the product.
We strictly implement responsibility of the post,
1) When you confirm order,the design department will send the final design for your confirmation before production.
2) The designer will follow the processing department to ensure each mechanical parts are processed correctly and timely.
3) After all parts done,designer transfer responsibility to the Assembly Dept,which need to assemble the equipment on time.
4) Responsibility transferred to Adjustment Dept with the assembled machine.Sales will check the progress and feedback to customer.
5) After customer’s video checking/factory inspection,sales will arrange the delivery.
6) If customer have problem during application,Sales will ask the After-sales Dept to solve it together
Pharmaceutical Syrup, Honey, Edible Oil, Lubricant Oil, Hair Oil, Shampoo, Cosmetics, Wine, Liquor, Beer
This tunnel take on hot air circulation for shrinking, is mostly use for shrinking labels of bottles, jars and cups etc.Pharmaceutical Syrup, Honey, Edible Oil, Lubricant Oil, Hair Oil, Shampoo, Cosmetics, Wine, Liquor, Beer
