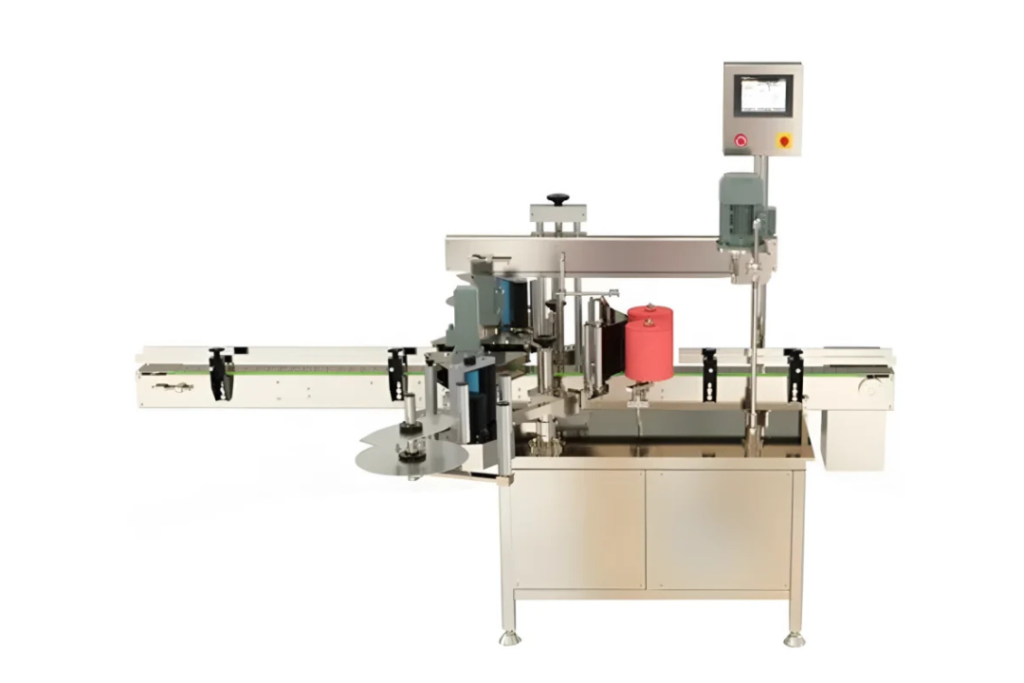

The SVHSSA100 Automatic horizontal shrink sleeve labeling Machine ( having optional hopper system) is designed to apply smaller diameter of sleeve for Small, unstable & light-weight products that do not stable themselves to vertical position. This advance technology model can handle 10-40 mm dia. of container and sleeve layflats up to 50 mm. Very compact and elegant design of machine made up from SS frame Structure that includes the Sleeve applicator, heat tunnel and roller conveyor, along with optional standard features.
It Machine having Product feeder , horizontal Sleeve inseter with a static reduction system, an innovative after-tamp sleeve centering station, an integrated compact heat tunnel, a roller conveyor that rotates product inside the heat tunnel, and a discharge ramp for gentle discharge of products from the system.
Inquire Here
At Siddhivinayak Engineering, you can easily inquire about our products or services by filling out the inquiry form or contacting our team directly. Reach out today to get personalized support and detailed information tailored to your industrial packaging requirements.
Specification of Automatic Horizontal Sleeve Label Applicator Machine
| Model | SVHSSA100 | SVHSSA200 |
| Direction of Movement | Left to Right | Left to Right |
| Output/Min* | Up to 100 Labels / Min. | Up to 200 Labels / Min. |
| Power Supply | 2.5 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) | 3.0 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) |
| MOC | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum |
| Machine Dimension | L 3000 mm * W 1800 mm * H 1500 mm | L 3500 mm * W 1800 mm * H 1500 mm |
| Sleeve Roll Core | 76 mm | 76 mm |
| Sleeve Roll Diameter | 400 mm | 400 mm |
| Bottle Diameter | 10~30 mm (Special Size Can be Customized) | 10~30 mm (Special Size Can be Customized) |
| Bottle Height | 50~130 mm (Special Size Can be Customized) | 50~130 mm (Special Size Can be Customized) |
| Sleeve Material | PVC / PET / OPS / PLA | PVC / PET / OPS / PLA |
| Stop Tolerance | +/ -1 mm | +/ -1 mm |
| Change Part | Mandrel, Feed Screw | Mandrel, Feed Screw |
| Sleeve Size | W 15-50 mm * H 25-120 mm * Thickness 38-50 µm | W 15-50 mm * H 25-120 mm * Thickness 38-50 µm |
| Gap between Two Sleeves | Minimum 4 mm | Minimum 4 mm |
| Printer Device | According to Customer’s Requirement | According to Customer’s Requirement |
| Machine Weight (kg) | 550 | 600 |
| **If Optional Features Are Choosen,Above Data May Vary. | ||
Salient Features of Automatic Horizontal Sleeve Label Applicator Machine
- Specially desing to small diameter, cylindrical products such as lipsticks, eyeliner pencils, mascaras, and lip balms that are not easily handled in a vertical position.
- No Bottle No Sleeve
- Stainless Steel Construction Including Main Machine Frame
- High-precision sleeve application.
- Advanced PLC Controlled Servo Motor opearated Sleeve Dispenser Unit.
- Unique desing of rotary sleeve Cutter - Exact cutting lengths of sleeve
- Spring-loaded type sleeve-feeding mechanism
- On-line speed can be vary at single touch point
- Equipped with semi-auto rotary feeding hopper as option for high speed production.
- Fully Synchronised Feed Screw - Creat equal space between the bottles.
- Vibration-Free Slat Chain Conveyor with Variable Speed Drive
- Flexible system- The machine is suitable for handling different sleeve lengths and diameters.
- Recipe functionality -Change machine settings with the push of a button for quick changeovers
- Tool less change over - Minimum Changes Over Time
- Auto Sleeve Length Measurement
- Accurate Sleeve Placement
- Safety guards and touch panel control system ensure unit is user friendly.
- Built-In Product Counter
- AC Drive (VFD) For Speed Control
- Height Adjustable Legs
- Polycarbonate Sheet Safety door
- Built-In Control Panel
