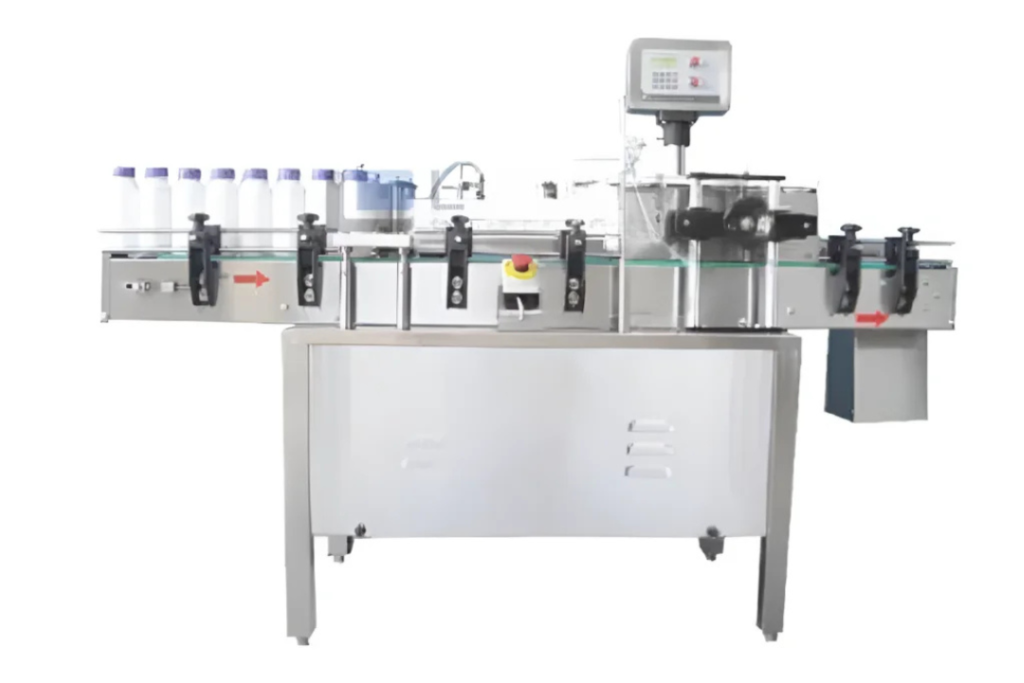

Automatic Jar Sticker Labeling Machine
Our Products Automatic Jar Sticker Labeling Machine Manufacturer India
The SVJSL50b & SVJSL100 is a Automatic Jar Sticker Labeling Machine. This Models are ideal for applying single full/ partial self-adhesive labels on round / flat surfaces of a wide range of Jar. These models are precisely engineered using quality assured components and high-end technology and Good Manufacturing Practice (GMP) by our skilled professionals. The machine is designed in such way that a single machine can handle different size of Round shape Containers & its Labels without Change Parts. The equipment can be amended as per the requirement of input as it is Tailor made Machine. Our offered ranges of Jar Sticker Labeling Machine are blended with salient attributes like high reliability, low maintenance and perfect accuracy.
Inquire Here
At Siddhivinayak Engineering, you can easily inquire about our products or services by filling out the inquiry form or contacting our team directly. Reach out today to get personalized support and detailed information tailored to your industrial packaging requirements.
Specification of Automatic Jar Sticker Labeling Machine
| Model | SVJSL50 | SVJSL100 |
| Direction of Movement | Left to Right | Left to Right |
| Output/Min* | Up to 50 Labels / Min. | Up to 100 Labels / Min. |
| Power Supply | 1.0 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) | 1.5 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) |
| MOC | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum |
| Machine Dimension | L 2000 mm * W 1450 mm * H 1400 mm | L 2500 mm * W 1450 mm * H 1400 mm |
| Label Dispenser Motor | Stepper Motor / Servo Motor | Servo Motor |
| Label Roll Core | 76 mm | 76 mm |
| Label Roll Diameter | 300 mm | 300 mm |
| Jar Size | Dia. 30~90 mm for Round Shape (Special Size Can be Customized) 25 -80 Sq mm for Sqaure Shape Jar | Dia. 30~150 mm for Round Shape (Special Size Can be Customized) 25 -120 Sq mm for Sqaure Shape Jar |
| Bottle Height | 30~280 mm (Special Size Can be Customized | 30~280 mm (Special Size Can be Customized |
| Label Material | Self-Adhesive Sticker | Self-Adhesive Sticker |
| Stop Tolerance | +/ -1 mm | +/ -1 mm |
| Label Height | 12 mm to 200 mm | 12 mm to 200 mm |
| Gap between Two Labels | Minimum 3 mm | Minimum 3 mm |
| Printer Device | According to Customer’s Requirement | According to Customer’s Requirement |
| Machine Weight (kg) | 350 | 400 |
| * Speed Depends on Sticker Length | ||
| **If Optional Features Are Choosen,Above Data May Vary. | ||
Salient Features of Automatic Jar Sticker Labeling Machine
- No Jar No Label
- Total GMP Model
- Strurdy Stainless Steel Frame Structure & Door
- Advance PLC Controlled Stepper / Servo Motor Label Dispenser Unit
- Vibration Free Slat Chain Conveyor With Variable Speed Drive
- Touch Screen display(HMI)
- Sponge Belt For safely Label Pressing
- Bottle Separator With Variable Speed DC Drive
- Fully Synchronised - Label Dispenser, Conveyor & wraparound Pressing Belt System
- Very Smooth & Accurate Label Placement
- Built In Product Counter
- On-Line Speed Can Be Vary at Single touch Point
- Partial Machine Guarding
- Built In Control Panel
- Auto Label Length Measurement
- Height Adjustable Legs
Our Products
- Automatic Bottle Unscrambler Machine
- Bottle Washing Machine
- Filling Machine
- Capping Machine
- Labeling Machine
- Shrink Wrapping Machine
- Case Packing Machine
- Special Purpose Machine
Optional Features of Automatic Jar Sticker Labeling Machine
- Label Roll Empty Alarm :When the label rolls empty, Machine stops with the alarm
- Safety Cabinet : To get more hygienic environment and ensure safety & quality use safety cabinet
- Missing Label : Machine stop with alarm or online pneumatic operated product rejection system
- In Feed / Out Feed Jamming Sensor : When In Feed / Out Feed bottle jamm - Machine stop with alarm
- Tower Light : Tower light Indicates the status of the process
- Batch Code Printer : Online batch code / barcode / 2D matrix code printing on label
- Inspection & Rejection System : Online vision Inspection and rejection system
- Transparent Label Scanner : For Transparent label Scanning
Product Also Known As of Automatic Jar Sticker Labeling Machine
- Round Jar Labeling Machine
- Neutraceutical Jar labeling
Machine Operation Process of Automatic Jar Sticker Labeling Machine
-
Step 1
Feed Jar on conveyor or using automatic botte turntable. The Space Creator creates a proper gap between two Jars, when the container moves on the Conveyor. -
Step 2
Product sensor checks the presence of Jar at labeling station and when the bottle is present below the labeling station the PLC gives command to Label Dispenser to dispense the label, meanwhile The Pressing belt presses the Jar at appropriate pressure and the label is stuck accurately on the container.
-
Step 3
The Pressing belt presses the container at appropriate pressure and the label is stuck accurately on the container. The machine is able to label up to 50 / 100 containers per minute depending on products and label size. -
Step 4
Then the bottle goes to the next processing.
Video of Automatic Jar Sticker Labeling Machine
Frequently Asked Questions
Please supply your products and label size (picture of labeled samples is rather helpful), then suitable labeling solution will be suggested accordingly.
Our Instllation team will Installation & Commissioning of the machine and provide complete technical training to the operating staff. If customer have problem after installation, Our After-sales Dept will guide to solve it on call and if probelm still not resolve then our sales team arrange the service visit and resolve it.
All the Fully automatic labeling systems can be integrated into production lines and packaging lines. These are usually connected to other systems and machines in the line via a conveyor belt. - both hardware and software.
Online Thermal Inkjet (TIJ), Continous Inkjet (CIJ) Thermal Transfer Over printing (TTO), Hot Foil Printer, Rubber Sterio Printet can be Interated with the labeing machine for Batch Code/ Barcode / Barcode printing.
If our labeling machines break down during operation, we are there to support our customers quickly and efficiently. With our limited warranty, we sufficiently replace/back our products. In the event of issues or questions, we have a full inside customer support team that can help clients through virtual assistance. We offer on-site support as well for our local Los Angeles area clients.
