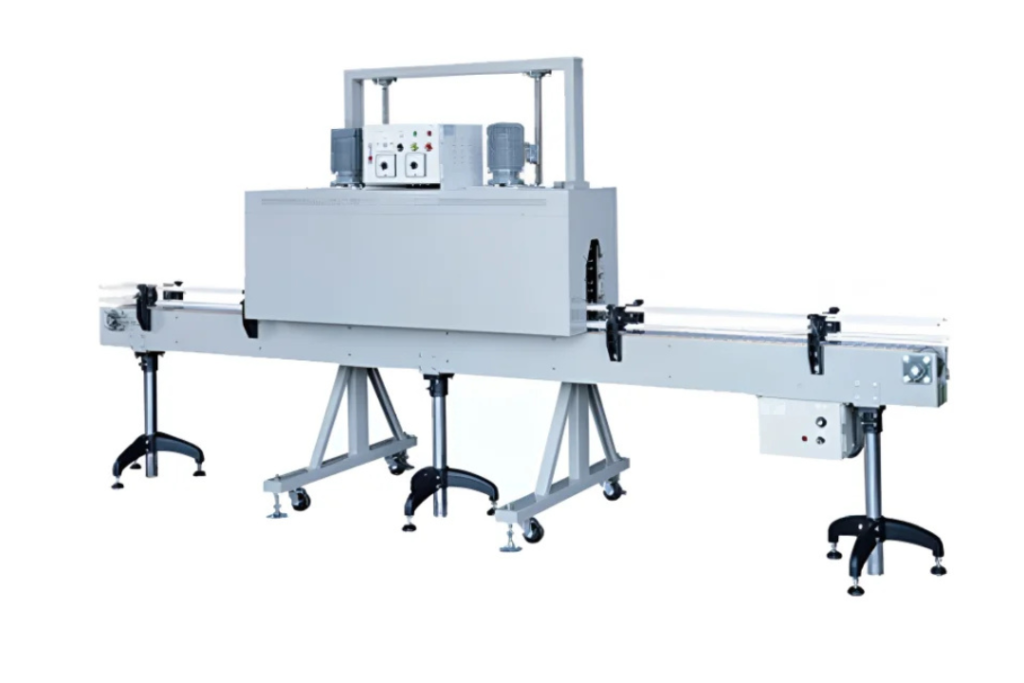

The Thermostatic Electric Heat Shruink Tunnel Machine is specially designed for shrink sleeve labels, tamper-proof banding and moisture sensitive products. It is outlined with double walls and heavy gauge hardened steel stock. This development configuration greatly increases productivity by allowing hot air to flow and protects workers from elevated heat levels. The excellent electroheating components of our electric shrink tunnels ensure uniform heat distribution and calibrated finishes on various films such as PLA, OPS, PETG and PVC. Two automatic airflow controls wind airflow around two separate areas. The virtually infinite changes in airflow combined with accurate and advanced temperature control make our electrically shrink tunnels adaptable shrink tunnels.
Inquire Here
At Siddhivinayak Engineering, you can easily inquire about our products or services by filling out the inquiry form or contacting our team directly. Reach out today to get personalized support and detailed information tailored to your industrial packaging requirements.
Specification of Electric Shrink Tunnel
| Model | SVEST 100 | SVEST 200 |
| Direction of Movement | Left To Right | Left To Right |
| Output/Min* | 60 BPM | 100 BPM |
| Power Supply | 9-12 kW, 3Phase + N +E, 440V AC, 50 Hz (Main Machine) | 12-15 kW, 3Phase + N +E, 440V AC, 50 Hz (Main Machine) |
| MOC | S.S.304 | S.S.304 |
| Machine Dimension | 1000 mm(L) x 450 mm(W) x 1680 mm(H) | 1500 mm(L) x 450 mm(W) x 1680 mm(H) |
| Tunnel Window Size | 130 mm(W) x 345 mm(H) | 130 mm(W) x 345 mm(H) |
| Tunnel Chamber Size | 1000mm (L) x 450 mm(W) x 530 mm(H) | 1500mm (L) x 450 mm(W) x 530 mm(H) |
| Bottle Diameter | 30~90 mm (Special Size Can be Customized) | 30~90 mm (Special Size Can be Customized) |
| Bottle Height | 50~300 mm (Special Size Can be Customized) | 50~300 mm (Special Size Can be Customized) |
| Sleeve Material | PVC / PET / OPS / PLA | PVC / PET / OPS / PLA |
| Change Part | Not required | Not required |
| Machine Weight | 150kg(Approx) | 215kg(Approx) |
| **If Optional Features Are Choosen,Above Data May Vary. | ||
Salient Features of Electric Shrink Tunnel
- S.S. 304 construction including machine frame.
- Hot air circulation system reduces 30% power consumption.
- Uniform airflow around product to produce tight & uniform shrinkage
- Durable stainless steel heating elements for rapid heating, high heating efficiency and long life time
- Variable speed S.S. Slat chain conveyor
- Digital-indicate controller adjusts heating for accurate control
- Lock casters for easy relocation
- Work alone or easy integration with production line
- Customized model on request.
- S.S. 304 construction including machine frame.
- High quality electric heating elements to focus heat
- High speed convection blowers
- Safe-Double shell design keeps outer temperatures of machine cooler
- Energy saving insulation with cool to touch panels
- Two independently controlled heating zone
Our Products
- Automatic Bottle Unscrambler Machine
- Bottle Washing Machine
- Filling Machine
- Capping Machine
- Labeling Machine
- Shrink Wrapping Machine
- Case Packing Machine
- Special Purpose Machine
Optional Features of Electric Shrink Tunnel
- Porable Steam Generator : 18 kW Portable Steam Boiler
- Excess Steam Blowe : 0.5 H.P. Vacuum Blower for exhuse of excessive steam
- Container Drying system : Air Knife System with Blower for drying of droplets on container.
Product Also Known As of Electric Shrink Tunnel
- Electric Heat Tunnel
- Automatic Heat Shrink Tunnel
- Electric Heat Shrink Tunnel
- Heat Shrink Tunnel Machine
- Fully Automatic Heat Shrink Tunnel
- Electric Heat Shrinking Machine
Machine Operation Process of Electric Shrink Tunnel
-
Step 1
Feed sleeve applied container on conveyor or using automatic sleeve applicator. The Conveyor moves very smoothly to convey the container and moving ahead in tunnel chamber. -
Step 2
In heat tunnel chamber, thermostatic heat eject on the sleeve applied container.Loose sleeve start to shrink and it will get a shape of container.
-
Step 3
once sleeve lebeling container comes outside from shrink tunnel,the container is cooled by environmental air anf will get perfect shape of container. -
Step 4
now,the container is ready to downstream packging.
Video of Electric Shrink Tunnel
Frequently Asked Questions
Heat Shrink Tunnel is employed for shrink sleeve label and tamper evident band application for a middle, full body and cap shrink applications
A Heat Shrink Tunnel Machine uses a conveyor and heat to maintain a constant temperature within the tunnel chamber.
We strictly implement responsibility of the post,
1) When you confirm order,the design department will send the final design for your confirmation before production.
2) The designer will follow the processing department to ensure each mechanical parts are processed correctly and timely.
3) After all parts done,designer transfer responsibility to the Assembly Dept,which need to assemble the equipment on time.
4) Responsibility transferred to Adjustment Dept with the assembled machine.Sales will check the progress and feedback to customer.
5) After customer’s video checking/factory inspection,sales will arrange the delivery.
6) If customer have problem during application,Sales will ask the After-sales Dept to solve it together
Pharmaceutical Syrup, Honey, Edible Oil, Lubricant Oil, Hair Oil, Shampoo, Cosmetics, Wine, Liquor, Beer
This tunnel take on hot air circulation for shrinking, is mostly use for shrinking labels of bottles, jars and cups etc.Pharmaceutical Syrup, Honey, Edible Oil, Lubricant Oil, Hair Oil, Shampoo, Cosmetics, Wine, Liquor, Beer
