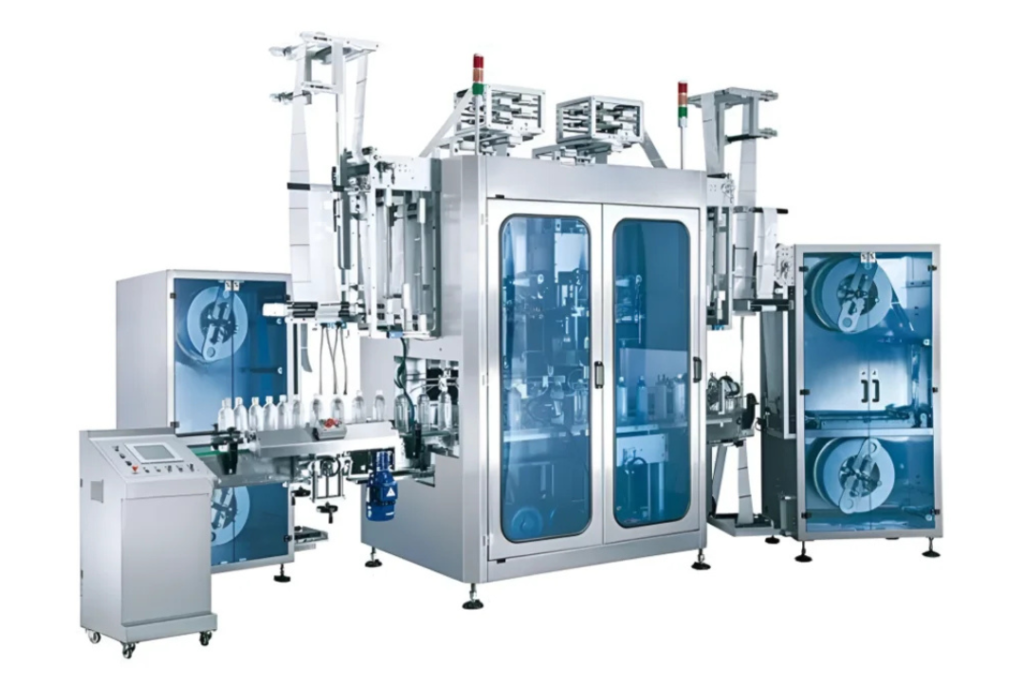

Automatic Dual Head Shrink Sleeve Labeling Machine can operate as a single head or dual head multifunction machine that can apply and shrink sleeve labels using two sync heads.Dual Head Shrink Label Applicator Machine is a unique and flexible dual lane automatic shrink label applicator machine. This model is extremely simple, highly efficient and operates with minimal maintenance.This mdoel is designed to place the sleeve in the desired position on containers of various sizes and shapes. This shrink label applicator is specially designed for customers who want to shrink by applying sleeve label and cap seal to the bottle at the same time, saving labor and space.
Helps increase efficiency. This dual head shrink labeling machine has two independent synchronous Sleeve Insetering heads, a dual head multifunction machine that can double the production as a single lane machine or by processing sleeve labels and cap seals at the same time.The perfect solution for full-body or full-body with tamper-proof sleeve. With a production capacity of up to 500 BPM,This unique model is suitable for a variety of industries with the ability to reduce labor and increase productivity.
Inquire Here
At Siddhivinayak Engineering, you can easily inquire about our products or services by filling out the inquiry form or contacting our team directly. Reach out today to get personalized support and detailed information tailored to your industrial packaging requirements.
Specification of Automatic Dual Head Shrink Sleeve Labeling Machine
| Model | SVDSSA100 | SVDSSA200 | SVDSSA300 | SVDSSA500 |
| Direction of Movement | Left to Right | Left to Right | Left to Right | Left to Right |
| Output/Min* | Up to 100 Labels / Min. | Up to 200 Labels / Min. | Up to 300 Labels / Min. | Up to 500 Labels / Min. |
| Power Supply | 4.0 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) | 5.0 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) | 5.5 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) | 6.0 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) |
| MOC | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum |
| Machine Dimension | L 4000 mm * W 1100 mm * H 2000 mm | L 4000 mm * W 1100 mm * H 2000 mm | L 4500 mm * W 1100 mm * H 2000 mm | L 5000 mm * W 1100 mm * H 2000 mm |
| Sleeve Roll Core | 76 mm | 76 mm | 76 mm | 76 mm |
| Sleeve Roll Diameter | 400 mm | 400 mm | 400 mm | 400 mm |
| Bottle Diameter | 30~90 mm (Special Size Can be Customized) | 30~90 mm (Special Size Can be Customized) | 30~90 mm (Special Size Can be Customized) | 30~90 mm (Special Size Can be Customized) |
| Bottle Height | 50~300 mm (Special Size Can be Customized) | 50~300 mm (Special Size Can be Customized) | 50~300 mm (Special Size Can be Customized) | 50~300 mm (Special Size Can be Customized) |
| Sleeve Material | PVC / PET / OPS / PLA | PVC / PET / OPS / PLA | PVC / PET / OPS / PLA | PVC / PET / OPS / PLA |
| Stop Tolerance | +/ -1 mm | +/ -1 mm | +/ -1 mm | +/ -1 mm |
| Change Part | Mandrel, Feed Screw | Mandrel, Feed Screw | Mandrel, Feed Screw | Mandrel, Feed Screw |
| Sleeve Size | W 25-150 mm * H 25-300 mm * Thickness 38-50 µm | W 25-150 mm * H 25-300 mm * Thickness 38-50 µm | W 25-150 mm * H 25-300 mm * Thickness 38-50 µm | W 25-150 mm * H 25-300 mm * Thickness 38-50 µm |
| Gap between Two Sleeves | Minimum 4 mm | Minimum 4 mm | Minimum 4 mm | Minimum 4 mm |
| Printer Device | According to Customer’s Requirement | According to Customer’s Requirement | According to Customer’s Requirement | According to Customer’s Requirement |
| Machine Weight (kg) | 900 | 950 | 1050 | 1150 |
| **If Optional Features Are Choosen,Above Data May Vary. | ||||
Salient Features of Automatic Dual Head Shrink Sleeve Labeling Machine
- No Bottle No Sleeve
- Innovative structure design- To ensure excellent durability and good structural quality
- Both Head can operate indivisually - Can use for Body & Neck sleeve or Body/ Neck Sleeve.
- High-precision sleeve application.
- Safety guards and touch panel control system ensure unit is user friendly.
- Using multi-axis Controller and synchronous design to reach the high speed accurately.
- Unique desing of rotary sleeve Cutter - Exact cutting lengths of sleeve
- Spring-loaded type sleeve-feeding mechanism with double sleeve roll holders -To reduce time for changing the sleeve roll without any machine intrupt (optnally)
- Sensor Based Motorised Sleeve Roll Unwinder system - smooth sleeve feeding.
- On-line speed can be vary at single touch point
- Fully Synchronised Feed Screw - Creat equal space between the bottles.
- Vibration-Free Slat Chain Conveyor with Variable Speed Drive
- Flexible system- The machine is suitable for handling different sleeve lengths and diameters.
- Auto Seeve Length Measurement
- Tool less change over - Minimum Changes Over Time
- Accurate Sleeve Placement
- Built-In Product Counter
- AC Drive For Speed Control
- Height Adjustable Legs
- Polycarbonate Sheet Safety door
- Built-In Control Panel
Our Products
- Automatic Bottle Unscrambler Machine
- Bottle Washing Machine
- Filling Machine
- Capping Machine
- Labeling Machine
- Shrink Wrapping Machine
- Case Packing Machine
- Special Purpose Machine
Optional Features of Automatic Dual Head Shrink Sleeve Labeling Machine
- Sleeve Roll Empty Alarm : When the Sleeve rolls empty, Machine stops with the alarm
- Stand Alone Unwined System with Line Accumulator : This option can be integrated to the Hight Speed SleevePro models to avoid downtime on the production line by using the accumulator to splice to a new roll.
- Missing Sleeve : Machine stop with alarm or online pneumatic operated product rejection system
- In Feed / Out Feed Jamming Sensor : When In Feed / Out Feed bottle jamm - Machine stop with alarm
- Tower Light : Tower light Indicates the status of the process
- Batch Code Printer : Online batch code / barcode / 2D matrix code printing on label
- Inspection & Rejection System :Online vision Inspection and rejection system
- Anti Static ionizer System : To Reduce static charge on sleeve
Product Also Known As of Automatic Dual Head Shrink Sleeve Labeling Machine
- Double Head Shrink Sleeve Applicator
- Automatic Dual Head Shrink Sleeve Applicator Machine
- Dual Head Automatic Shrink Sleeve Labeling
- Dual Head Sleeve Applicator Labeler
- Automatic Dual Head Sleeve Applicator Labeler Machine
- Shrink Sleeve Aplicator Dual Head Machine
- Shrink Sleeve Aplicator Machine With Dual Head
- Dual Head Sleeving Machine
Machine Operation Process of Automatic Dual Head Shrink Sleeve Labeling Machine
-
Step 1
Feed bottles on conveyor or using automatic botte turntable OR manually. The Conveyor convey the bottles very smoothly. The Space Creator Feed Screw creates a proper gap between two bottles, when the bottle moves on the Conveyor. Bottle Orienter belt orient the bottle in the right position for sleeving. -
Step 2
When the bottle presents below the 1st Sleeving Station Unit, Product sensor checks the presence of the bottle and the PLC gives command to the 1st Sleeve Dispenser Unit for dispense the sleeve. 1st Rotary cutter unit cut the sleeve at proper position with help of sleeve scanner. The sleeve pusher unit inserts the cut sleeve onto the bottle white bottle was continuously moved on the conveyor. -
Step 3
1st Unit Motorised Hair brush system settle down sleeve at desired position.
-
Step 4
When the bottle presents below the 2nd Sleeving Station Unit, Product sensor checks the presence of the bottle and the PLC gives command to the 2nd Sleeve Dispenser Unit for dispense the sleeve. 2nd Rotary cutter unit cut the sleeve at proper position with help of sleeve scanner. The sleeve pusher unit inserts the cut sleeve onto the bottle white bottle was continuously moved on the conveyor. -
Step 5
2nd Unit Motorised Sleeve Pusher system will settle down sleeve at desired position. -
Step 6
Then the bottle goes to the shrink tunnel.
Video of Automatic Dual Head Shrink Sleeve Labeling Machine
Frequently Asked Questions
This Machine Can Be Used In Two Position Operation. It Could Be Used For Sleeve Labeling On Both Bottles' Neck And Body Save Space And Cost Of Equipments.
Automatic Dual Head Shrink Sleeve mechanism works with multiple aspects. They are shrink tunnel, conveyor, sleeve feeding, perforators, etc. The material is fed into the tunnel with the help of PLC control and slat conveyors support for sending product one by one into the tunnel.
We strictly implement responsibility of the post,
1) When you confirm order,the design department will send the final design for your confirmation before production.
2) The designer will follow the processing department to ensure each mechanical parts are processed correctly and timely.
3) After all parts done,designer transfer responsibility to the Assembly Dept,which need to assemble the equipment on time.
4) Responsibility transferred to Adjustment Dept with the assembled machine.Sales will check the progress and feedback to customer.
5) After customer’s video checking/factory inspection,sales will arrange the delivery.
6) If customer have problem during application,Sales will ask the After-sales Dept to solve it together
Sleeve materials made from PVC, PET/PETG, OPS, hybrid, or PLA material.
This Sleeve Applicaor Machine is used in various packaging technologies like foods, beverages, and personal care products, cosmetic and medical equipments.
