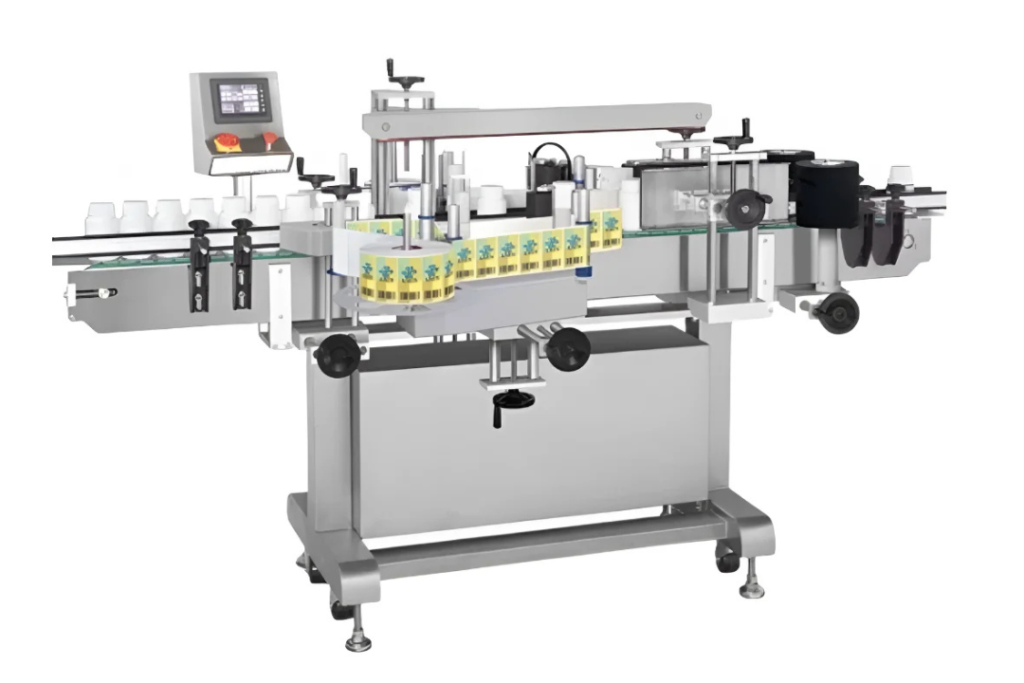

Automatic Wrap Around Sticker Labeling Machine
Our Products Precision Bottle Labeling with Wrap Around Machines
SVSL50/100 Automatic Wrap Around Labeling Machine is a cost-effective labeling system that offers the highest standards of product security and labeling quality. This SVSL Seriese is suitable to apply Fully/ Partially adhesive labels on Cylindrical/ Sqare shape bottles & jars. With just a tap of its one-touch screen, you can easily adjust the various settings for your product needs.Our servo drivers deliver accurate and high speed repeatable labeling. An easily accessible hand wheel type quickset label dispenser adjuster allows more “up-time” on your production line.The rigid stainless steel machine provides high stability while being simple to maintain and operate.
The labeler is used in virtually all industries where best-in-class reliability is the mandate for producing efficiently. Designed with a personalized technology controlling system, operator-friendly accessories, and flexibility in product choices. The SVSL50/100 series an ideal machine for manufacturers serving the pharmaceutical, nutraceutical, csometic, brewery, dairy, Home care products and food markets as well as contract packagers.
Inquire Here
At Siddhivinayak Engineering, you can easily inquire about our products or services by filling out the inquiry form or contacting our team directly. Reach out today to get personalized support and detailed information tailored to your industrial packaging requirements.
Specification of Automatic Wrap Around Sticker Labeling Machine
| Model | SVWL50 | SVWL100 | SVWL200 |
| Direction of Movement | Left to Right | Left to Right | Left to Right |
| Output/Min* | Up to 50 Labels / Min. | Up to 100 Labels / Min. | Up to 200 Labels / Min. |
| Power Supply | 1.5 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) | 1.5 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) | 1.5 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) |
| MOC | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum |
| Machine Dimension** | L 2000 mm * W 1450 mm * H 1400 mm | L 2000 mm * W 1450 mm * H 1400 mm | L 2500 mm * W 1600 mm * H 1400 mm |
| Label Dispenser | Stepper Motor / Servo Motor operated Dispenser | Stepper Motor / Servo Motor operated Dispenser | Servo Motor operated Double Roller High Speed Dispenser |
| Star Plat | Synchronised Rotary Star Plat | ||
| Label Roll Core | 76 mm | 76 mm | 76 mm |
| Label Roll Diameter | 300 mm | 300 mm | 300 mm |
| Bottle Diameter | 30~90 mm (Special Size Can be Customized) | 30~90 mm (Special Size Can be Customized) | 30~90 mm (Special Size Can be Customized) |
| Bottle Height | 30~280 mm (Special Size Can be Customized | 30~280 mm (Special Size Can be Customized | 30~280 mm (Special Size Can be Customized |
| Label Material | Self-Adhesive Sticker | Self-Adhesive Sticker | Self-Adhesive Sticker |
| Stop Tolerance | +/ -1 mm | +/ -1 mm | +/ -1 mm |
| Label Height | 12 mm to 150 mm | 12 mm to 150 mm | 12 mm to 200 mm |
| Lable Pressing system | Motorised Rubber Roller with Pneumatic operated Pressing Roller | Motorised Wraparound Foam Belt with Staionery high density foam sponge Pad | Motorised high speed Wraparound Timing Belt |
| Gap between Two Labels | Minimum 3 mm | Minimum 3 mm | Minimum 3 mm |
| Printer Device | According to Customer’s Requirement | According to Customer’s Requirement | According to Customer’s Requirement |
| Machine Weight (kg) | 300(Approx) | 300(Approx) | 350(Approx) |
| * Speed Depends on Sticker Length | |||
| **If Optional Features Are Choosen,Above Data May Vary. | |||
Salient Features of Automatic Wrap Around Sticker Labeling Machine
- No Bottle No Label
- Total GMP Model
- Strurdy Stainless Steel Frame Structure & Doors
- Advance PLC Controlled Servo Motor operated High speed Label Dispenser Unit.
- Vibration Free Slat Chain Conveyor With Variable Speed Drive
- Touch Screen display(HMI)
- Unique desinge of Start plat with UHMW roller- Scratchless bottle transfer at high speed.
- Sponge Belt For safely Label Pressing
- Fully Synchronised - Label Dispenser, Star plat & Pressing Belt System
- Very Smooth & Accurate Label Placement
- Built In Product Counter
- On-Line Speed Can Be Vary at Single touch Point
- Partial Machine Guarding
- Built In Control Panel
- Auto Label Length Measurement
- Height Adjustable Legs
Our Products
- Automatic Bottle Unscrambler Machine
- Bottle Washing Machine
- Filling Machine
- Capping Machine
- Labeling Machine
- Shrink Wrapping Machine
- Case Packing Machine
- Special Purpose Machine
Optional Features of Automatic Wrap Around Sticker Labeling Machine
- Label Roll Empty Alarm : Label rolls empty- Machine stops with the alarm
- Safety Cabinet : To get more hygienic environment and ensure safety & quality use safety cabinet
- Missing Label in bottle: To recover the missing label gap and feed continous label.
- Missing Label on bottle : Missing Label On bottle -Machine stop with alarm or online pneumatic operated product rejection system
- In Feed Low Sensor : In Feed low - Machine stop with alarm
- Out Feed Jamming Sensor : Out Feed bottle jam - Machine stop with alarm
- Tower Light : Tower light Indicates the status of the process
- Batch Code Printer : Online batch code / barcode / 2D matrix code printing on label
- Inspection & Rejection System : Online vision Inspection and rejection system (21 CFR PART 11 compliance)
- Transparent Label Scanner : For Transparent label Scanning
- Custom Wrap Belts and Feed Screw : For custom size of bottle or custom application
- Infeed and Outfeed Conveyor Extensions : For conect with existng machine conveyor .
Product Also Known As of Automatic Wrap Around Sticker Labeling Machine
- Automatic Sticker Labeling Machine
- Round Bottle Sticker Labeling Machine
- Automatic Bottle Sticker Labeling Machine
- Pharmaceutical Syrup Bottle Labeling Machine
- Sticker Labeling Machine
- Labeling Machine
- Round Galss Bottle Labeling Machine
- Round cosmetic Jar Labeling Machine
Machine Operation Process of Automatic Wrap Around Sticker Labeling Machine
-
Step 1
Feed bottles on conveyor or using botte turntable. The Space Creator creates a proper gap between two bottles, when the bottle moves on the Conveyor. -
Step 2
Product sensor checks the presence of bottle at labeling station and when the bottle is present below the labeling station the PLC gives command to Label Dispenser to dispense the label, meanwhile the wraparound belt rotate and press the container at appropriate pressure and the label sticks accurately on the bottle.
-
Step 3
Then the bottle moves to the next process. -
Step 4
The machine is able to label up to 100 / 200 containers per minute depending on products and label size.
Video of Automatic Wrap Around Sticker Labeling Machine
Frequently Asked Questions
A wide variety of products and product packaging can be labeled with labeling machines. Whether large/small cylindrica shape - with labeling systems almost any product shape can be labeled. We offers suitable labeling machines for all formats and surfaces.
Please supply your products and label size (picture of labeled samples is rather helpful), then suitable labeling solution will be suggested accordingly.
We strictly implement responsibility of the post,
1) When you confirm order,the design department will send the final design for your confirmation before production.
2) The designer will follow the processing department to ensure each mechanical parts are processed correctly and timely.
3) After all parts done,designer transfer responsibility to the Assembly Dept,which need to assemble the equipment on time.
4) Responsibility transferred to Adjustment Dept with the assembled machine.Sales will check the progress and feedback to customer.
5) After customer’s video checking/factory inspection,sales will arrange the delivery.
6) If customer have problem during application,Sales will ask the After-sales Dept to solve it together.
We strictly implement responsibility of the post,
1) When you confirm order,the design department will send the final design for your confirmation before production.
2) The designer will follow the processing department to ensure each mechanical parts are processed correctly and timely.
3) After all parts done, designer transfer responsibility to the Assembly Dept, which need to assemble the equipment on time.
4) Responsibility transferred to Adjustment Dept with the assembled machine. We'll check the progress and feedback to customer.
5) After customer’s video checking/factory inspection,we'll arrange the delivery.
6) If customer have problem during application, ask the After-sales Dept to solve it.
Self-adhesive sticker.
