Automatic Double Side Sticker Labeling Machine
Our Products Trusted Automatic Double Side Sticker Labeling Machine

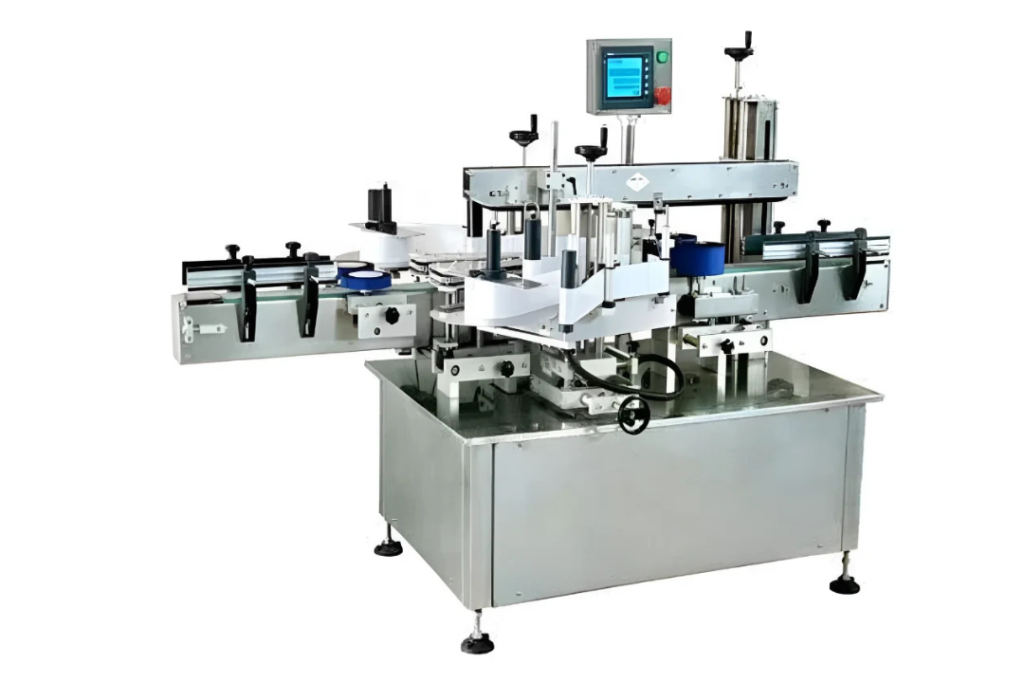

The SVDL100/200/300 is multi-purpose automatic double side sticker labeling machine. This series machines are suitable for applying sticker labels on the front and back side of bottles, jars, etc.; either round, flat, oval, rectangular or square in shape. It is a multi-pack linear machine with a uniquely designed continuous movement. When handling complex products, special centering devices ensure very precise label positioning. It has an output of up to 100/200/300 labels in a minute, based on the label and product size. The labeling speed is also dependent on the stable motion of the product on the conveyor of the equipment, at a relatively higher speed.
Further, the automatic product alignment system is fully synchronized with the top stabilizing belt system to provide maximum stability and vertical positioning of the bottles with different shapes. It even incorporates the most modern label dispensing system and a simple sensing system for labels and products. It’s easy to operate and requires less maintenance. The SVDL100/200/300 series an ideal machine for manufacturers serving the pharmaceutical, nutraceutical, Beverages, csometic, Brewery, dairy, Home care products and food markets as well as contract packagers.
Inquire Here
At Siddhivinayak Engineering, you can easily inquire about our products or services by filling out the inquiry form or contacting our team directly. Reach out today to get personalized support and detailed information tailored to your industrial packaging requirements.
Specification of Automatic Double Side Sticker Labeling Machine
| Model | SVDL100 | SVDL200 | SVDL300 |
| Direction of Movement | Left to Right | Left to Right | Left to Right |
| Output/Min* | Up to 100 Labels / Min. | Up to 200 Labels / Min. | Up to 300 Labels / Min. |
| Power Supply | 2.0 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) | 2.5kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) | 3.0 kWSingle Phase 230V, 50Hz AC Supply (Can Customized as Client Need) |
| MOC | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum |
| Machine Dimension** | L 2500 mm * W 2100 mm * H 1500 mm | L 2500 mm * W 2100 mm * H 1500 mm | L 3000 mm * W 2100 mm * H 1500 mm |
| Label Dispenser Motor | Stepper Motor / Servo Motor | Servo Motor | Servo Motor |
| Label Roll Core | 76 mm | 76 mm | 76 mm |
| Label Roll Diameter | 300 mm | 300 mm | 300 mm |
| Bottle Diameter | 30~90 mm (Special Size Can be Customized | 30~90 mm (Special Size Can be Customized | 30~90 mm (Special Size Can be Customized |
| Bottle Height | 30~300 mm (Special Size Can be Customized) | 30~300 mm (Special Size Can be Customized) | 30~300 mm (Special Size Can be Customized) |
| Bottle Orientaion System | Belt / feed screw orientation (Mechanically synchronized) | Belt / feed screw orientation (Mechanically synchronized) | Belt / feed screw orientation (Mechanically synchronized) |
| Label Material | Self-Adhesive Sticker | Self-Adhesive Sticker | Self-Adhesive Sticker |
| Stop Tolerance | +/ -1 mm | +/ -1 mm | +/ -1 mm |
| Label Height | 12 mm to 200 mm | 12 mm to 200 mm | 12 mm to 200 mm |
| Gap between Two Labels | Minimum 3 mm | Minimum 3 mm | Minimum 3 mm |
| Printer Device | According to Customer’s Requirement | According to Customer’s Requirement | According to Customer’s Requirement |
| Machine Weight (kg) | 600 | 625 | 650 |
| * Speed Depends on Sticker Length | |||
| **If Optional Features Are Choosen,Above Data May Vary. | |||
Salient Features of Automatic Double Side Sticker Labeling Machine
- No Bottle No Label
- Total GMP Model
- Strurdy Stainless Steel Frame Structure & Door
- Advance PLC Controlled Servo Motor Label Dispenser Unit
- Both Label Dispenser Can Operate Individually
- Motoriesed Label Roll Unwinder system - Smooth label roll unwind.
- Color Touch Screen display(HMI)
- Apart form convectional Orientaton system for flat shape bottle, machine can handle oval shape bottle with feed screw oreientaion system
- Top Stabilizing Belt -Stable bottle movment.
- Spring Loaded Label Pressing Sponge Roller Arrangement
- Bottle Separator With Variable Speed DC Drive
- Vibration Free Slat Chain Conveyor With Variable Speed Drive
- Very Smooth & Accurate Label Placement
- Built In Product Counter
- On-Line Speed Can Be Vary at Single touch Point
- Partial Machine Guarding
- Built In Control Panel
- Auto Label Length Measurement
- Height Adjustable Legs
Our Products
- Automatic Bottle Unscrambler Machine
- Bottle Washing Machine
- Filling Machine
- Capping Machine
- Labeling Machine
- Shrink Wrapping Machine
- Case Packing Machine
- Special Purpose Machine
Optional Features of Automatic Double Side Sticker Labeling Machine
- Label Roll Empty Alarm : Label rolls empty- Machine stops with the alarm
- Safety Cabinet : To get more hygienic environment and ensure safety & quality use safety cabinet
- Missing Label in bottle : To recover the missing label gap and feed continous label.
- Missing Label on bottle : Missing Label On bottle -Machine stop with alarm or online pneumatic operated product rejection system
- In Feed Low Sensor : In Feed low - Machine stop with alarm
- Out Feed Jamming Sensor : Out Feed bottle jam - Machine stop with alarm
- Tower Light : Tower light Indicates the status of the process
- Batch Code Printer : Online batch code / barcode / 2D matrix code printing on label
- Inspection & Rejection System : Online vision Inspection and rejection system (21 CFR PART 11 compliance)
- Transparent Label Scanner : For Transparent label Scanning
- Custom Wrap Belts and Feed Screw : For custom size of bottle or custom application
- Infeed and Outfeed Conveyor Extensions : For conect with existng machine conveyor .
Product Also Known As of Automatic Double Side Sticker Labeling Machine
- Automatic Flat bottle labeling Machine
- Front & Back side sticker Labeling Machine
- Sqaure bottle Labeling Machine
- Distillery Bottle Labeling Machine
- Glass Bottle Labeling Machine
- Wine Bottle Sitcker Labeling Machine
- Cosmetic bottle Sticker Labeling Machine
- Water Bottle Sticker Labeling Machine
- Flat Jar Sticker Labeling Machine
Machine Operation Process of Automatic Double Side Sticker Labeling Machine
-
Step 1
Feed bottles on conveyor or using automatic botte turntable. The Conveyor moves very smoothly to convey the bottle and The Space Creator creates a proper gap between two containers, when the container moves on the Conveyor. Bottle orienter belt/ Feed Wrom orients the bottle in the right position for labeling. -
Step 2
The Top stabilizing belt will hold under the top stabilizing belt and travel to the labeling station. This Bottle Orienter also creates the proper gap between two bottles.
-
Step 3
Product sensor checks the presence of bottle at labeling station and when the bottle is present below the labeling station, the PLC gives command to the both Label Dispenser to dispense the label. The Pressing rollers press the container at appropriate pressure and the label is stuck accurately on the container. -
Step 4
The Pressing rollers press the container at appropriate pressure and the label is stuck accurately on the container. -
Step 5
Then the bottle goes to the next processing.
Video of Automatic Double Side Sticker Labeling Machine
Frequently Asked Questions
Please supply your products and label size (picture of labeled samples is rather helpful), then suitable labeling solution will be suggested accordingly.
Our Instllation team will Installation & Commissioning of the machine and provide complete technical training to the operating staff. If customer have problem after installation, Our After-sales Dept will guide to solve it on call and if probelm still not resolve then our sales team arrange the service visit and resolve it.
All the Fully automatic labeling systems can be integrated into production lines and packaging lines. These are usually connected to other systems and machines in the line via a conveyor belt. - both hardware and software.
Online Thermal Inkjet (TIJ), Continous Inkjet (CIJ) Thermal Transfer Over printing (TTO), Hot Foil Printer, Rubber Sterio Printet can be Interated with the labeing machine for Batch Code/ Barcode / Barcode printing.
If our labeling machines break down during operation, we are there to support our customers quickly and efficiently. With our limited warranty, we sufficiently replace/back our products. In the event of issues or questions, we have a full inside customer support team that can help clients through virtual assistance. We offer on-site support as well for our local Los Angeles area clients.
