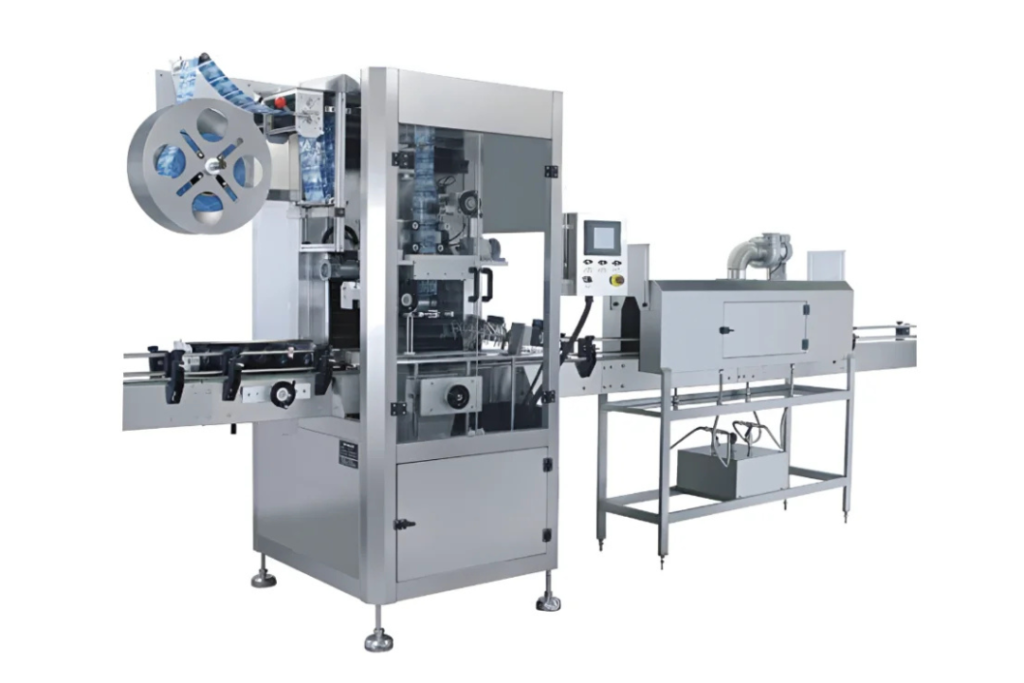

Automatic Single Head Sleeve Labeling Machine
Our Products Advanced Automatic Single Head Sleeve Labeling Solutions
Our Automatic Single Head Sleeve Labeling Machine, Have three model – SVSA100, SVSA200 & SVSA300 is design to insert sleeve with desired position on various size and shape of bottles. Machie is suitable for variety of industries with an opportunity to reduce labour and increase manufacturing rates. The machine having integrating functions of delivering & classifying containers, Accurate cutting of label sleeving and proper positioning of sleeve on bottle. SVSA 100 / 200 / 300 is constructed on sturdy welded steel frame completely enclose in stainless steel sheet and doors and aluminium alloy.
The unit consisting of sleeve roll loader-carrier assembly, conveyor bottle separating assembly, Centre pillar, Bottle positioning mechanism, Cutter mechanism, Optical scanner, controlling assembly and Brush assembly etc. This model operates with great simplicity, high efficiency and minimal maintenance with production capacity up to 300BPM.
Inquire Here
At Siddhivinayak Engineering, you can easily inquire about our products or services by filling out the inquiry form or contacting our team directly. Reach out today to get personalized support and detailed information tailored to your industrial packaging requirements.
Specification of Automatic Single Head Sleeve Labeling Machine
| Model | SVSSA100 | SVSSA200 | SVSSA300 | SVSSA500 |
| Direction of Movement | Left to Right | Left to Right | Left to Right | Left to Right |
| Output/Min* | Up to 100 Labels / Min. | Up to 200 Labels / Min. | Up to 300 Labels / Min. | Up to 500 Labels / Min. |
| Power Supply | 2.5 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) | 3.0 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) | 3.5 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) | 4.5 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) |
| MOC | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum |
| Machine Dimension | L 2500 mm * W 1100 mm * H 2000 mm | L 2500 mm * W 1100 mm * H 2000 mm | L 3000 mm * W 1100 mm * H 2000 mm | L 3500 mm * W 1100 mm * H 2000 mm |
| Sleeve Roll Core | 76 mm | 76 mm | 76 mm | 76 mm |
| Sleeve Roll Diameter | 400 mm | 400 mm | 400 mm | 400 mm |
| Bottle Diameter | 30~90 mm (Special Size Can be Customized) | 30~90 mm (Special Size Can be Customized) | 30~90 mm (Special Size Can be Customized) | 30~90 mm (Special Size Can be Customized) |
| Bottle Height | 50~300 mm (Special Size Can be Customized) | 50~300 mm (Special Size Can be Customized) | 50~300 mm (Special Size Can be Customized) | 50~300 mm (Special Size Can be Customized) |
| Sleeve Material | PVC / PET / OPS / PLA | PVC / PET / OPS / PLA | PVC / PET / OPS / PLA | PVC / PET / OPS / PLA |
| Stop Tolerance | +/ -1 mm | +/ -1 mm | +/ -1 mm | +/ -1 mm |
| Change Part | Mandrel, Feed Screw | Mandrel, Feed Screw | Mandrel, Feed Screw | Mandrel, Feed Screw |
| Sleeve Size | W 25-150 mm * H 25-300 mm * Thickness 38-50 µm | W 25-150 mm * H 25-300 mm * Thickness 38-50 µm | W 25-150 mm * H 25-300 mm * Thickness 38-50 µm | W 25-150 mm * H 25-300 mm * Thickness 38-50 µm |
| Gap between Two Sleeves | Minimum 4 mm | Minimum 4 mm | Minimum 4 mm | Minimum 4 mm |
| Printer Device | According to Customer’s Requirement | According to Customer’s Requirement | According to Customer’s Requirement | According to Customer’s Requirement |
| Machine Weight (kg) | 550 | 600 | 650 | 700 |
Salient Features of Automatic Single Head Sleeve Labeling Machine
- No Bottle No Sleeve
- Stainless Steel Construction Including Main Machine Frame
- High-precision sleeve application.
- Safety guards and touch panel control system ensure unit is user friendly.
- Advanced high speed PLC Controlled Servo Motor opearated Sleeve Dispenser Unit.
- Unique desing of rotary sleeve Cutter - Exact cutting lengths of sleeve
- Spring-loaded type sleeve-feeding mechanism with double sleeve roll holders -To reduce time for changing the sleeve roll without any machine intrupt (optnally)
- Sensor Based Motorised Sleeve Roll Unwinder system - smooth sleeve feeding.
- On-line speed can be vary at single touch point
- Fully Synchronised Feed Screw - Creat equal space between the bottles.
- Vibration-Free Slat Chain Conveyor with Variable Speed Drive
- Flexible system- The machine is suitable for handling different sleeve lengths and diameters.
- Auto Seeve Length Measurement
- Tool less change over - Minimum Changes Over Time
- Accurate Sleeve Placement
- Built-In Product Counter
- AC Drive For Speed Control
- Height Adjustable Legs
- Polycarbonate Sheet Safety door
- Built-In Control Panel
Our Products
- Automatic Bottle Unscrambler Machine
- Bottle Washing Machine
- Filling Machine
- Capping Machine
- Labeling Machine
- Shrink Wrapping Machine
- Case Packing Machine
- Special Purpose Machine
Optional Features of Automatic Single Head Sleeve Labeling Machine
- Sleeve Roll Empty Alarm : When the Sleeve rolls empty, Machine stops with the alarm
- Stand Alone Unwined System with Line Accumulator : This option can be integrated to the Hight Speed SleevePro models to avoid downtime on the production line by using the accumulator to splice to a new roll.
- Missing Sleeve : Machine stop with alarm or online pneumatic operated product rejection system
- In Feed / Out Feed Jamming Sensor : When In Feed / Out Feed bottle jamm - Machine stop with alarm
- Tower Light : Tower light Indicates the status of the process
- Batch Code Printer : Online batch code / barcode / 2D matrix code printing on label
- Inspection & Rejection System : Online vision Inspection and rejection system
Product Also Known As of Automatic Single Head Sleeve Labeling Machine
- Automatic Sleeve Applicator
- Juice Bottle Sleeve Applicator
- Beverges Bottle Sleeve labeling machine
- High Speed Sleeve Applicator
- Sleeve Applicator
- Automatc Sleeve Labeler
- Body Sleeve Applicator
Machine Operation Process of Automatic Single Head Sleeve Labeling Machine
-
Step 1
Feed bottles on conveyor or using automatic botte turntable. The Conveyor moves very smoothly to convey the bottle and The Space Creator creates a proper gap between two containers, when the container moves on the Conveyor. Bottle Orienter orient the bottle in the right position for sleeving. -
Step 2
Product sensor checks the presence of the bottle at sleeving station and when the bottle is present below the sleeve station, the PLC gives command to the Sleeve Dispenser to dispense the sleeve. Rotary cutter unit cut the Sleeve at proper Position with help of sleeve scanner. The sleeve pusher unit inserts the cut sleeve onto the bottle white bottle was continuously moved on the conveyor.
-
Step 3
Motorised Hair brush/ Sleeve Pusher system settle down sleeve at desired position. -
Step 4
Then the bottle goes to the shrink tunnel.
Video of Automatic Single Head Sleeve Labeling Machine
Frequently Asked Questions
Please supply your products and label size (picture of labeled samples is rather helpful), then suitable labeling solution will be suggested accordingly.
Our Instllation team will Installation & Commissioning of the machine and provide complete technical training to the operating staff. If customer have problem after installation, Our After-sales Dept will guide to solve it on call and if probelm still not resolve then our sales team arrange the service visit and resolve it.
All the Fully automatic labeling systems can be integrated into production lines and packaging lines. These are usually connected to other systems and machines in the line via a conveyor belt. - both hardware and software.
Online Thermal Inkjet (TIJ), Continous Inkjet (CIJ) Thermal Transfer Over printing (TTO), Hot Foil Printer, Rubber Sterio Printet can be Interated with the labeing machine for Batch Code/ Barcode / Barcode printing.
If our labeling machines break down during operation, we are there to support our customers quickly and efficiently. With our limited warranty, we sufficiently replace/back our products. In the event of issues or questions, we have a full inside customer support team that can help clients through virtual assistance. We offer on-site support as well for our local Los Angeles area clients.
