Automatic Rotary Vial Sticker Labeling Machine

Home » Products » Labeling Machine » Automatic Rotary Vial Sticker Labeling Machine

Our Products Reliable Automatic Rotary Vial Sticker Labeling Machines

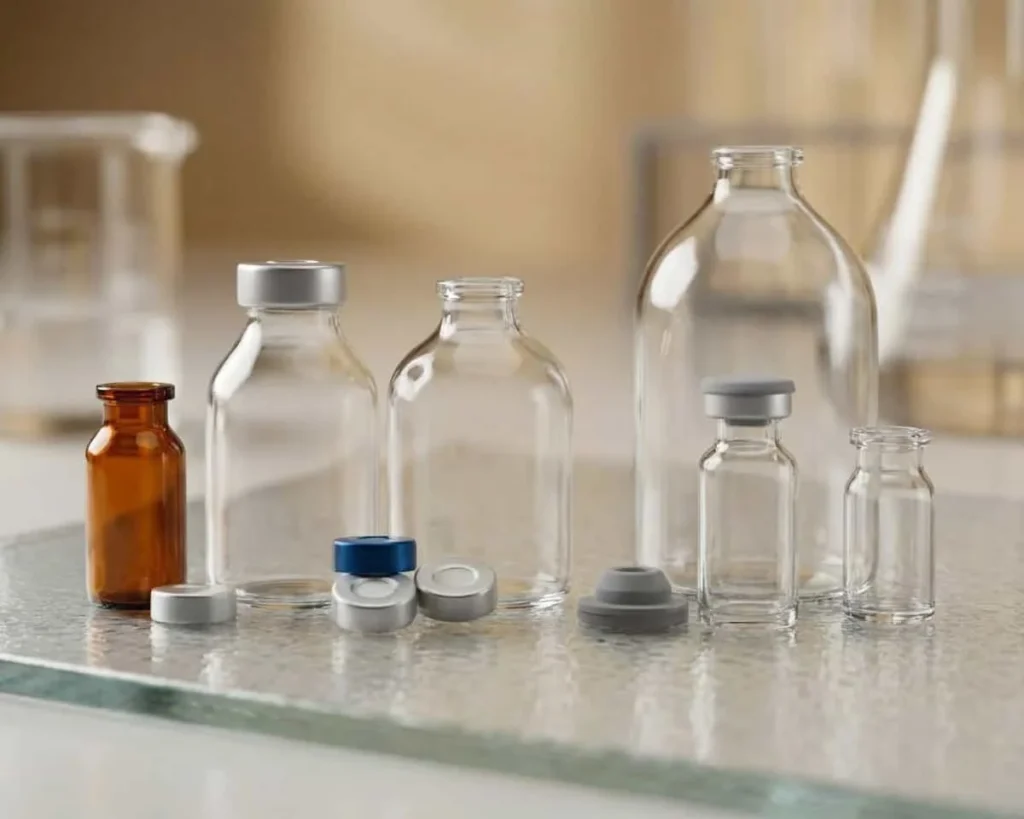

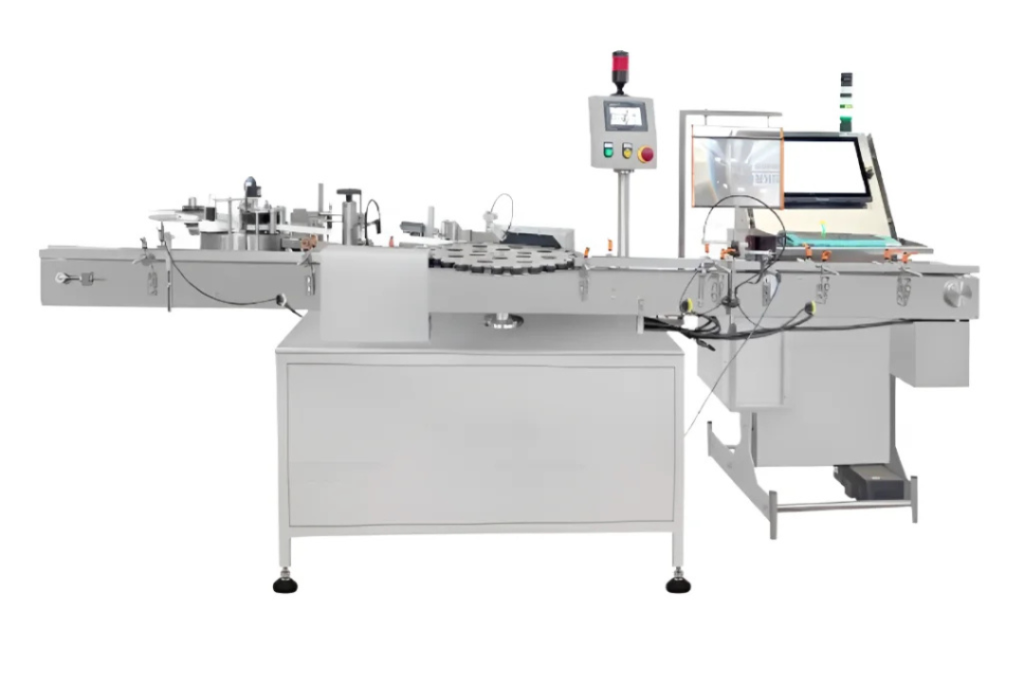

The SVRVL 100/200/300 is a fully automated vertical rotary labeling machine. This machine is suitable for accurately attaching fully / partially wrapped adhesive labels to round ampoules / vials of various sizes.Ampoules / vials are loaded through the loading tray and ampoules / vials are collected through the collection tray.This machine has additional advantages such as a special feeder that can feed vials directly from the tray in a vertical position and also collect labeled products on the tray in a vertical position. Operators can also supply vials online for labeling without stopping the machine.This Machine is likewise include anti vibration toes and adjustable in height.

The SVARL 100/200/300 is the fastest, user compatible, fully protected and Alomost Maintenance Free.The operation of this machine is completely synchronized. This model can be labeled up to 100/200/300 BPM according to product and label size.

Inquire Here

At Siddhivinayak Engineering, you can easily inquire about our products or services by filling out the inquiry form or contacting our team directly. Reach out today to get personalized support and detailed information tailored to your industrial packaging requirements.

Specification of Automatic Rotary Vial Sticker Labeling Machine

Model	SVRVL100	SVRVL200	SVRVL300
Direction of Movement	Left to Right	Left to Right	Left to Right
Output/Min*	Up to 100 Labels / Min.	Up to 200 Labels / Min.	Up to 300 Labels / Min.
Power Supply	1.0 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need)	1.2 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need)	1.5 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need)
MOC	Stainless Steel 304, Anodized Aluminum	Stainless Steel 304, Anodized Aluminum	Stainless Steel 304, Anodized Aluminum
Machine Dimension	L 1500 mm * W 1300 mm * H 1400 mm	L 2000 mm * W 1300 mm * H 1400 mm	L 2000 mm * W 1300 mm * H 1400 mm
Label Roll Core	76 mm	76 mm	76 mm
Label Roll Diameter	300 mm	300 mm	300 mm
Vial Size**	Ø 10-60 mm * H 30-80 mm (Special Size Can be Customized)	Ø 10-60 mm * H 30-80 mm (Special Size Can be Customized)	Ø 10-60 mm * H 30-80 mm (Special Size Can be Customized)
Label Material	Self-Adhesive Sticker	Self-Adhesive Sticker	Self-Adhesive Sticker
Stop Tolerance	+/ -1 mm	+/ -1 mm	+/ -1 mm
Label Size	L 12-120 mm * H 15-50 mm	L 12-120 mm * H 15-50 mm	L 12-120 mm * H 15-50 mm
Gap between Two Labels	Minimum 3 mm	Minimum 3 mm	Minimum 3 mm
Printer Device	According to Customer’s Requirement	According to Customer’s Requirement	According to Customer’s Requirement
Machine Weight (kg)	350	350	350
* Speed Depends on Sticker Length
** Require Change Part - Star Plate
**If Optional Features Are Choosen,Above Data May Vary.

Salient Features of Automatic Rotary Vial Sticker Labeling Machine

No Bottle No Label
Total GMP Model
Strurdy Stainless Steel Frame Structure & Door
Advance PLC Controlled Servo Motor Label Dispenser Unit
Very smooth & vibration free Rotary Indexing Star Wheel System
Spring action Sponge Belt for safely Label Pressing
Fully Synchronised - Label Dispenser, Satrwheel, wraparound Pressing Belt & conveyor belt
Motoriesed Label Roll Unwinder system -Smooth label roll unwind.
On-Line Speed Can Be Vary at Single touch Point
Accurate Label Placement
Touch Screen HMI
Built-In Product Counter
AC Drive For Speed Control
Auto Label Length Measurement
Height Adjustable Legs
Partial Machine Guarding
Built-In Control Panel

Our Products

Automatic Bottle Unscrambler Machine
Bottle Washing Machine
Filling Machine
Capping Machine
Labeling Machine
Shrink Wrapping Machine
Case Packing Machine
Special Purpose Machine

Optional Features of Automatic Rotary Vial Sticker Labeling Machine

Label Roll Empty Alarm : When the label rolls empty, Machine stops with the alarm
Safety Cabinet : To get more hygienic environment and ensure safety & quality use safety cabinet
Missing Label : Machine stop with alarm or online pneumatic operated product rejection system
In Feed / Out Feed Jamming Sensor : When In Feed / Out Feed bottle jamm - Machine stop with alarm
Tower Light : In Feed low - Tower light Indicates the status of the process
Batch Code Printer : Online batch code / barcode / 2D matrix code printing on label
Inspection & Rejection System : Online vision Inspection and rejection system
Transparent Label Scanner : For Transparent label Scanning

Product Also Known As of Automatic Rotary Vial Sticker Labeling Machine

Machine Operation Process of Automatic Rotary Vial Sticker Labeling Machine

Step 1
Feed vial on conveyor or using automatic turntable. The Conveyor moves very smoothly to convey the vial. Rotary star plat indexer collect the vial and moves to the labeling station.
Step 2
At the labeling station pressing belt rotates the vial, simultaneously the product sensor checks the presence of the vial. PLC gives command to the Label Dispenser to dispense the label.

Video of Automatic Rotary Vial Sticker Labeling Machine

Frequently Asked Questions

1. Which kind of machine can meet my labeling requirement?

Please supply your products and label size (picture of labeled samples is rather helpful), then suitable labeling solution will be suggested accordingly.

2. How is the customer support - Installation, after sales services?

Our Instllation team will Installation & Commissioning of the machine and provide complete technical training to the operating staff. If customer have problem after installation, Our After-sales Dept will guide to solve it on call and if probelm still not resolve then our sales team arrange the service visit and resolve it.

3. Can labeling machines be integrated into an existing production line or packaging line?

All the Fully automatic labeling systems can be integrated into production lines and packaging lines. These are usually connected to other systems and machines in the line via a conveyor belt. - both hardware and software.

4. Can Online Batch code/ Bar Code printer be set up with the labeling machines?

Online Thermal Inkjet (TIJ), Continous Inkjet (CIJ) Thermal Transfer Over printing (TTO), Hot Foil Printer, Rubber Sterio Printet can be Interated with the labeing machine for Batch Code/ Barcode / Barcode printing.

5. How is the customer support?

If our labeling machines break down during operation, we are there to support our customers quickly and efficiently. With our limited warranty, we sufficiently replace/back our products. In the event of issues or questions, we have a full inside customer support team that can help clients through virtual assistance. We offer on-site support as well for our local Los Angeles area clients.
