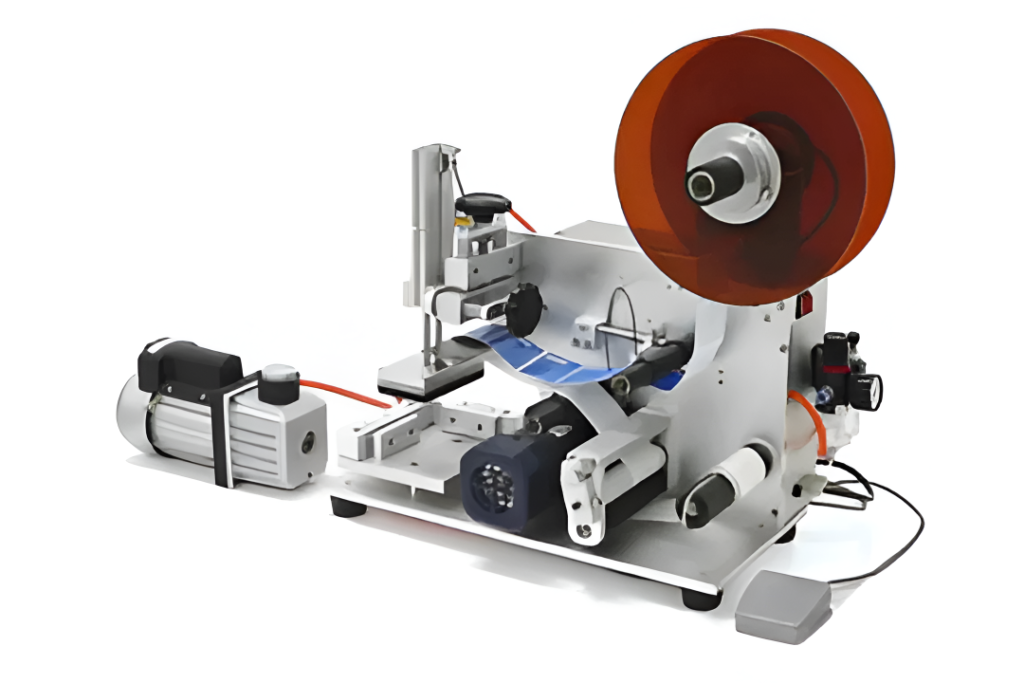

Semi Automatic Flat Shape Sticker Labeling Machine
Our Products Precision Semi Automatic Flat Shape Labeling Machine
This SVSAFSL series sticker labeling machine is semi-automatic labeling machine which is suitable for the flat surface labeling for small batches.This is a cost-effective and table top labeling system that offers the highest labeling quality. This Labeling Machine is very compact and sturdy. This labeler has quick changeover times combined with unrivaled precision and reliability. The SVSAFSL series an ideal machine for manufacturers serving the pharmaceutical, nutraceutical, Beverages, cosmetic, Brewery, dairy, Home care products and food markets as well as contract packagers.
Inquire Here
At Siddhivinayak Engineering, you can easily inquire about our products or services by filling out the inquiry form or contacting our team directly. Reach out today to get personalized support and detailed information tailored to your industrial packaging requirements.
Specification of Semi Automatic Flat Shape Sticker Labeling Machine
| Model | SVSAFSL6 | SVSAFSL8 |
| Output/Min* | Up to 15-25 Labels / Min. | Up to 15-25 Labels / Min. |
| Power Supply | 100W Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) | 150W Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need) |
| MOC | Stainless Steel 304, MS Powder Coated | Stainless Steel 304, MS Powder Coated |
| Machine Dimension** | L 600 mm * W 350 mm * H 650 mm | L 600mm * W 400 mm * H 650 mm |
| Label Roll Core | 76 mm | 76 mm |
| Label Roll Diameter | 300 mm | 300 mm |
| Bottle Length | 30~150 mm (Special Size Can be Customized | 30~200 mm (Special Size Can be Customized |
| Bottle Width | 30~100 mm (Special Size Can be Customized) | 30~125 mm (Special Size Can be Customized) |
| Bottle Height | 10~100 mm (Special Size Can be Customized) | 10~125 mm (Special Size Can be Customized) |
| Label Material | Self-Adhesive Sticker | Self-Adhesive Sticker |
| Stop Tolerance | +/ -1 mm | +/ -1 mm |
| Label Height | 25 mm to 100 mm | 25 mm to 150 mm |
| Gap between Two Labels | Minimum 3 mm | Minimum 3 mm |
| Printer Device | According to Customer’s Requirement | According to Customer’s Requirement |
| MachineWeight (kg) | 25 | 30 |
| * Speed Depends on Sticker Length | ||
| **If Optional Features Are Choosen,Above Data May Vary. | ||
Salient Features of Semi Automatic Flat Shape Sticker Labeling Machine
- Aluminium Powder Coated Construction Including Main Machine Frame
- Very Compact design & low Power Consumption.
- High Efficient And Most User Friendly Model
- No change part require for different size of bottle
- Microprocessor controller based Label Dispenser System
- Optical Scanner for Label Scanning
- Air Pneumatic Vacuum Pad For Accurate Label Placement
- Most Precise operation of Label Dispenser
- Optical Scanner For Label Scanning
- Partial Machine Guarding
Our Products
- Automatic Bottle Unscrambler Machine
- Bottle Washing Machine
- Filling Machine
- Capping Machine
- Labeling Machine
- Shrink Wrapping Machine
- Case Packing Machine
- Special Purpose Machine
Optional Features of Semi Automatic Flat Shape Sticker Labeling Machine
- Transparent Label Scanner : For Transparent label Scanning
Product Also Known As of Semi Automatic Flat Shape Sticker Labeling Machine
- Semi Automatic Sticket Laeling Machine
- Tabel Top flat bottle Sticker Labeling Machine
- Portable Sticker Labeling Machine
- Shampoo bottle Labeling Machine
- Flat Jar Labeling Machine
- Flat Glass bottle labelig machine
- Water Bottle Sticker Labeling Machine
- Oval Shape Bottle Labeling Machine
Machine Operation Process of Semi Automatic Flat Shape Sticker Labeling Machine
-
Step 1
Manually feed bottles on labeling station. -
Step 2
Press the foot switch, label dispenser releases the label and vacuum pad hold the label and pneumatic cylinder press and fix the label on the bottle, where more pressure is desired for better fixation.
-
Step 3
Rewinder roller system rewind the release paper. Take labeled bottle from labeling station.
Video of Semi Automatic Flat Shape Sticker Labeling Machine
Frequently Asked Questions
Please supply your products and label size (picture of labeled samples is rather helpful), then suitable labeling solution will be suggested accordingly.
Our Instllation team will Installation & Commissioning of the machine and provide complete technical training to the operating staff. If customer have problem after installation, Our After-sales Dept will guide to solve it on call and if probelm still not resolve then our sales team arrange the service visit and resolve it.
All the Fully automatic labeling systems can be integrated into production lines and packaging lines. These are usually connected to other systems and machines in the line via a conveyor belt. - both hardware and software.
Online Thermal Inkjet (TIJ), Continous Inkjet (CIJ) Thermal Transfer Over printing (TTO), Hot Foil Printer, Rubber Sterio Printet can be Interated with the labeing machine for Batch Code/ Barcode / Barcode printing.
If our labeling machines break down during operation, we are there to support our customers quickly and efficiently. With our limited warranty, we sufficiently replace/back our products. In the event of issues or questions, we have a full inside customer support team that can help clients through virtual assistance. We offer on-site support as well for our local Los Angeles area clients.
