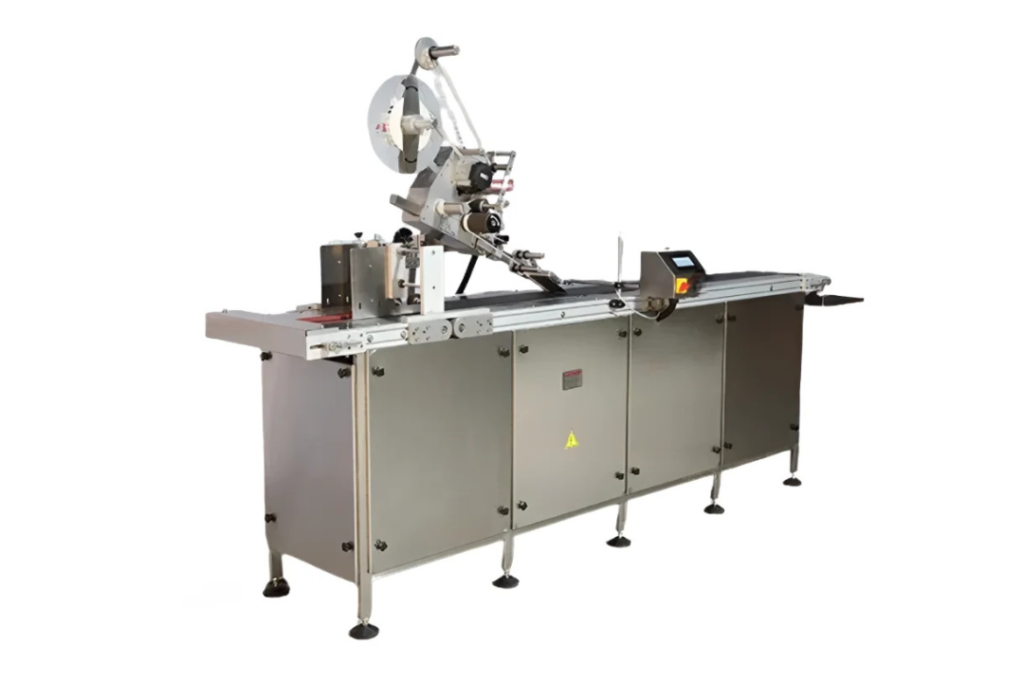

Automatic Pouch Sticker Labeling Machine

Home » Products » Labeling Machine » Automatic Pouch Sticker Labeling Machine

Our Products Pouch Sticker Labeling Machine for Smooth Operations

Automatic Pouch Sticker labeling machines-SVPL100,SVPL200 & SVPL300 have their own single point, such as sync speed control system and flexible multi-drive application.The bottle labeling machine has Inbuilt Automated Label Length detection systems that eliminates the need for manually feeding and storing of Label Length data in memory and retrieving the same every time for change of label size & re-starting the machine.This saves valuable time, avoids machine downtime, and contributes to increased production. The automatic horizontal label applicator machine is one of the most user-friendly.

Labeling machines are equipped with state-of-the-art servos or advanced PLC-based label dispensing systems with user-friendly labels and product sensor systems. Suitable for bag sticker labeling. The labeler capacity is up to 300 products per minute, depending on the product diameter and label size. Our SVPL100 and SVPL200 and SVPL300 models produce up to 300 products per minute, depending on the application and system.

Inquire Here

At Siddhivinayak Engineering, you can easily inquire about our products or services by filling out the inquiry form or contacting our team directly. Reach out today to get personalized support and detailed information tailored to your industrial packaging requirements.

Specification of Automatic Pouch Sticker Labeling Machine

Model	SVPL100	SVPL200	SVPL300
Direction of Movement	Left to Right	Left to Right	Left to Right
Output/Min*	Up to 100 Labels / Min.	Up to 200 Labels / Min.	Up to 300 Labels / Min.
Power Supply	1.0 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need)	1.2 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need)	1.5 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need)
MOC	Stainless Steel 304, Anodized Aluminum	Stainless Steel 304, Anodized Aluminum	Stainless Steel 304, Anodized Aluminum
Machine Dimension	L 2000 mm * W 600 mm * H 1600 mm	L 2000 mm * W 600 mm * H 1600 mm	L 2000 mm * W 600 mm * H 1600 mm
Label Roll Core	76 mm	76 mm	76 mm
Label Roll Diameter	300 mm	300 mm	300 mm
Pouch Size	L 75-150 mm * W 100-250mm (Special Size Can be Customized)	L 75-150 mm * W 100-250mm (Special Size Can be Customized)	L 75-150 mm * W 100-250mm (Special Size Can be Customized)
Label Material	Self-Adhesive Sticker	Self-Adhesive Sticker	Self-Adhesive Sticker
Stop Tolerance	+/ -1 mm	+/ -1 mm	+/ -1 mm
Label Size	L 25-140 mm * W 25-200 mm	L 25-140 mm * W 25-200 mm	L 25-140 mm * W 25-200 mm
Gap between Two Labels	Minimum 3 mm	Minimum 3 mm	Minimum 3 mm
Printer Device	According to Customer’s Requirement	According to Customer’s Requirement	According to Customer’s Requirement
Machine Weight (kg)	450	450	450
* Speed Depends on Sticker Length
**If Optional Features Are Choosen,Above Data May Vary.

Salient Features of Automatic Pouch Sticker Labeling Machine

No Pouch No Label
Total GMP Model
Strurdy Stainless Steel Frame Structure & Door
Advance PLC Controlled Servo Motor Label Dispenser Unit
Suitable toApply label on Top /bottom side on flat surface
Touch Screen display(HMI)
Motoriesed Label Roll Unwinder system -Smooth label roll unwind.
Label Pressing Roller- Accurate label pressing
Bottle Separator With Variable Speed DC Drive
Vibration Free PVC endless Conveyor belt with Variable Speed Drive
Vacuum Conveyor Belt for Stable movement of pouch while apply the label
Very Smooth & Accurate Label Placement
Auto Label Length Measurement
Built In Product Counter
On-Line Speed Can Be Vary at Single touch Point
Partial Machine Guarding
Built In Control Panel
Height Adjustable Legs

Our Products

Automatic Bottle Unscrambler Machine
Bottle Washing Machine
Filling Machine
Capping Machine
Labeling Machine
Shrink Wrapping Machine
Case Packing Machine
Special Purpose Machine

Optional Features of Automatic Pouch Sticker Labeling Machine

Label Roll Empty Alarm : When the label rolls empty, Machine stops with the alarm
Safety Cabinet : To get more hygienic environment and ensure safety & quality use safety cabinet
Missing Label : Machine stop with alarm or online pneumatic operated product rejection system
In Feed / Out Feed Jamming Sensor : When In Feed / Out Feed Bottle Jamm - Machine Stop With Alarm
Tower Light : Tower light Indicates the status of the process
Batch Code Printer : Online batch code / barcode / 2D matrix code printing on label
Inspection & Rejection System : Online vision Inspection and rejection system
Transparent Label Scanner : For Transparent label Scanning

Product Also Known As of Automatic Pouch Sticker Labeling Machine

Machine Operation Process of Automatic Pouch Sticker Labeling Machine

Step 1
Feed pouch on conveyor or using automatic pouch stacker. The stacker unit creates a proper gap between two pouches, when the pouch moves on the Conveyor.
Step 2
Product sensor checks the presence of the pouch at the labeling station and when the pouch is present below the labeling station the PLC gives command to Label Dispenser to dispense the label. This Optical scanner of Label dispenser unit which is most necessary to apply accurately and precisely label on pouch.

Video of Automatic Pouch Sticker Labeling Machine

Frequently Asked Questions

1. Which kind of machine can meet my labeling requirement?

Please supply your products and label size (picture of labeled samples is rather helpful), then suitable labeling solution will be suggested accordingly.

2. How is the customer support - Installation, after sales services?

Our Instllation team will Installation & Commissioning of the machine and provide complete technical training to the operating staff. If customer have problem after installation, Our After-sales Dept will guide to solve it on call and if probelm still not resolve then our sales team arrange the service visit and resolve it.

3. Can labeling machines be integrated into an existing production line or packaging line?

All the Fully automatic labeling systems can be integrated into production lines and packaging lines. These are usually connected to other systems and machines in the line via a conveyor belt. - both hardware and software.

4. Can Online Batch code/ Bar Code printer be set up with the labeling machines?

Online Thermal Inkjet (TIJ), Continous Inkjet (CIJ) Thermal Transfer Over printing (TTO), Hot Foil Printer, Rubber Sterio Printet can be Interated with the labeing machine for Batch Code/ Barcode / Barcode printing.

5. How is the customer support?

If our labeling machines break down during operation, we are there to support our customers quickly and efficiently. With our limited warranty, we sufficiently replace/back our products. In the event of issues or questions, we have a full inside customer support team that can help clients through virtual assistance. We offer on-site support as well for our local Los Angeles area clients.
