Automatic Ampoule Sticker Labeling Machine

Home » Products » Labeling Machine » Automatic Ampoule Sticker Labeling Machine

Our Products Industrial Automatic Ampoule Sticker Labeling Equipment

The SVARL200, SVARL300 & SVARL500 is a Fully Automatic Single Side Vertical Rotary/Vial Sticker Labeling Machine. This machine is apposite to apply full/ partial wrap around self adhesive Labels precisely on different size of round Ampoule or vial. Loading of ampoule/Vial is done by loader tray and collecting of ampoule is done by collection tray. The SVARL200, SVARL300 & SVARL500 is one of the high speed, most user compatible, fully protected and almost maintenance free. Operation of this machine is fully synchronized. Capability of this model is labeling up to 500 Ampoules per minutes depending on products and label size.

Inquire Here

At Siddhivinayak Engineering, you can easily inquire about our products or services by filling out the inquiry form or contacting our team directly. Reach out today to get personalized support and detailed information tailored to your industrial packaging requirements.

Specification of Automatic Ampoule Sticker Labeling Machine

Model	SVRVL200	SVRVL300	SVRVL500
Direction of Movement	Left to Right	Left to Right	Left to Right
Output/Min*	Up to 100 Labels / Min.	Up to 300 Labels / Min.	Up to 500 Labels / Min.
Power Supply	1.5 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need)	2.0 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need)	2.0 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need)
MOC	Stainless Steel 304, Anodized Aluminum	Stainless Steel 304, Anodized Aluminum	Stainless Steel 304, Anodized Aluminum
Machine Dimension	L 1200 mm * W 1300 mm * H 1450 mm	L 1500 mm * W 1500 mm * H 1450 mm	L 1500 mm * W 1500 mm * H 1450 mm
Label Roll Core	76 mm	76 mm	76 mm
Label Roll Diameter	300 mm	300 mm	300 mm

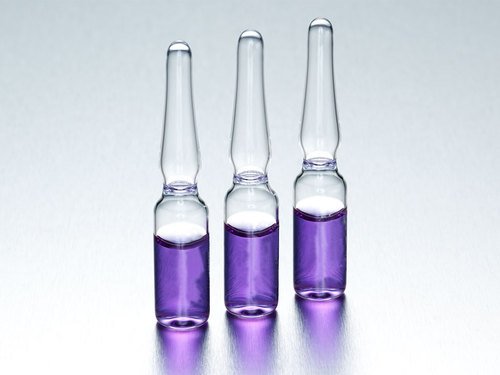

Ampoule Size	1-10 ml (Special Size Can be Customized)	1-10 ml (Special Size Can be Customized)	1-10 ml (Special Size Can be Customized)
Label Material	Self-Adhesive Sticker	Self-Adhesive Sticker	Self-Adhesive Sticker
Stop Tolerance	+/ -1 mm	+/ -1 mm	+/ -1 mm
Label Size	L 10-25 mm * H 12-25 mm	L 10-25 mm * H 12-25 mm	L 10-25 mm * H 12-25 mm
Gap between Two Labels	Minimum 3 mm	Minimum 3 mm	Minimum 3 mm
Printer Device	According to Customer’s Requirement	According to Customer’s Requirement	According to Customer’s Requirement
Machine Weight (kg)	300	350	350
* Speed Depends on Sticker Length
** Require Change Part - Star Plate
**If Optional Features Are Choosen,Above Data May Vary.

Salient Features of Automatic Ampoule Sticker Labeling Machine

No Bottle No Label
Total GMP Model
Strurdy Stainless Steel Frame Structure & Door
Advance PLC Controlled Stepper / Servo Motor Label Dispenser Unit
S.S Tray for Loading & Un Loading of Ampoule
Motoriesed Label Roll Unwinder system -Smooth label roll unwind.
Very smooth & vibration free Rotary Indexing Star Wheel System
Spring action Sponge Belt for safely Label Pressing
Fully Synchronised - Label Dispenser, Feed Screw, Starwheel, & Pressing Belt
Touch Screen HMI
On-Line Speed Can Be Vary at Single touch Point
Accurate Label Placement
Built-In Product Counter
AC Drive For Speed Control
Auto Label Length Measurement
Height Adjustable Legs
Partial Machine Guarding
Built-In Control Panel

Our Products

Automatic Bottle Unscrambler Machine
Bottle Washing Machine
Filling Machine
Capping Machine
Labeling Machine
Shrink Wrapping Machine
Case Packing Machine
Special Purpose Machine

Optional Features of Automatic Ampoule Sticker Labeling Machine

Label Roll Empty Alarm : When the label rolls empty, Machine stops with the alarm
Safety Cabinet : To get more hygienic environment and ensure safety & quality use safety cabinet
Missing Label : Machine stop with alarm or online pneumatic operated product rejection system
Tower Light : Tower light Indicates the status of the process
Batch Code Printer : Online batch code / barcode / 2D matrix code printing on label
Inspection & Rejection System : Online vision Inspection and rejection system
Transparent Label Scanner : For Transparent label Scanning

Product Also Known As of Automatic Ampoule Sticker Labeling Machine

Machine Operation Process of Automatic Ampoule Sticker Labeling Machine

Step 1
Feed Ampoule on the loading tray. The feed screw collect ampoules from the loading tray and feed to the Rotary star plat indexer. Star plat indexer moves ampoule to the labeling station.
Step 2
At the labeling station, Pressing belt rotates the ampoule, Simultaneously the product sensor checks the presence of the Ampoule. PLC gives command to the Label Dispenser to dispense the label.

Video of Automatic Ampoule Sticker Labeling Machine

Frequently Asked Questions

1. Which kind of machine can meet my labeling requirement?

Please supply your products and label size (picture of labeled samples is rather helpful), then suitable labeling solution will be suggested accordingly.

2. How is the customer support - Installation, after sales services?

Our Instllation team will Installation & Commissioning of the machine and provide complete technical training to the operating staff. If customer have problem after installation, Our After-sales Dept will guide to solve it on call and if probelm still not resolve then our sales team arrange the service visit and resolve it.

3. Can labeling machines be integrated into an existing production line or packaging line?

All the Fully automatic labeling systems can be integrated into production lines and packaging lines. These are usually connected to other systems and machines in the line via a conveyor belt. - both hardware and software.

4. Can Online Batch code/ Bar Code printer be set up with the labeling machines?

Online Thermal Inkjet (TIJ), Continous Inkjet (CIJ) Thermal Transfer Over printing (TTO), Hot Foil Printer, Rubber Sterio Printet can be Interated with the labeing machine for Batch Code/ Barcode / Barcode printing.

5. How is the customer support?

If our labeling machines break down during operation, we are there to support our customers quickly and efficiently. With our limited warranty, we sufficiently replace/back our products. In the event of issues or questions, we have a full inside customer support team that can help clients through virtual assistance. We offer on-site support as well for our local Los Angeles area clients.
